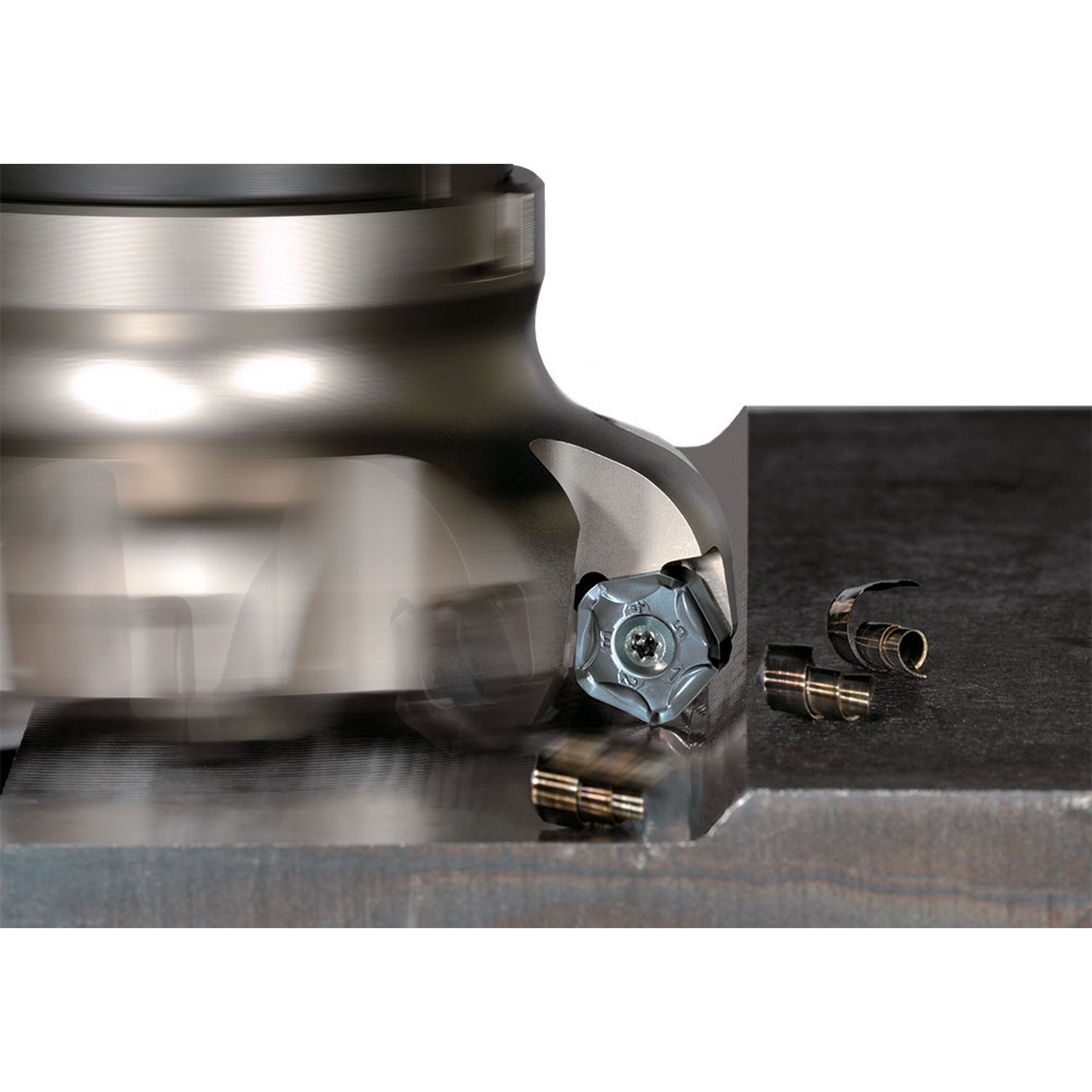

Kyocera Precision Tools TMA05054 | PNMU1205ANERSM CA6535 7/32" Thickness x 0.7039" Insert Length CVD Coated Carbide Milling Insert

$16.39
Brand:
Kyocera Precision Tools
Insert Size:
1205
Material:
Carbide;Finish/Coating=CVD
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.56mm
SKU:
23246689
Weight:
0.39 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, chamfering
  • Honed edge/low cutting force with 10 cutting edges
  • high heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
  • Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

Product Specifications
EDP NumberTMA05054
[INSL] Insert Length (Decimal Inch)0.7039"
[INSL] Insert Length (mm)17.88mm
[S] Thickness (Inch)7/32"
[S] Thickness (mm)5.56mm
ApplicationChamfering | Facing
ChipbreakerANER-SM
Coating ProcessCVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
1205
Material:
Carbide;Finish/Coating=CVD
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.56mm
