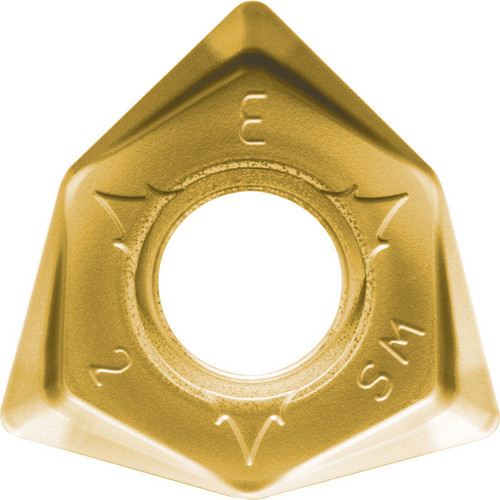

Kyocera Precision Tools TMA09311 | WNMU080608ENSM CA6535 0.552" Circle Diameter x 0.262" Thickness CVD Coated Carbide Milling Insert

$12.75
Brand:
Kyocera Precision Tools
Insert Size:
080608
Material:
Carbide;Finish/Coating=CVD
Inscribed Circle (Decimal Inch):
0.5500"
Inscribed Circle (mm):
14.02mm
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.65mm
SKU:
23246703
Weight:
0.32 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting
  • Honed edge with 6 cutting edges
  • High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
  • Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

Product Specifications
EDP NumberTMA09311
Insert Included Angle (Degree)80 Degree
Inscribed Circle (Inch)0.552"
[IC] Inscribed Circle (mm)14.02mm
[RE] Corner Radius (Inch)1/32"
[RE] Corner Radius (mm)0.80mm
[S] Thickness (Inch)0.262"
[S] Thickness (mm)6.65mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerEN-SM
Coating ProcessCVD
