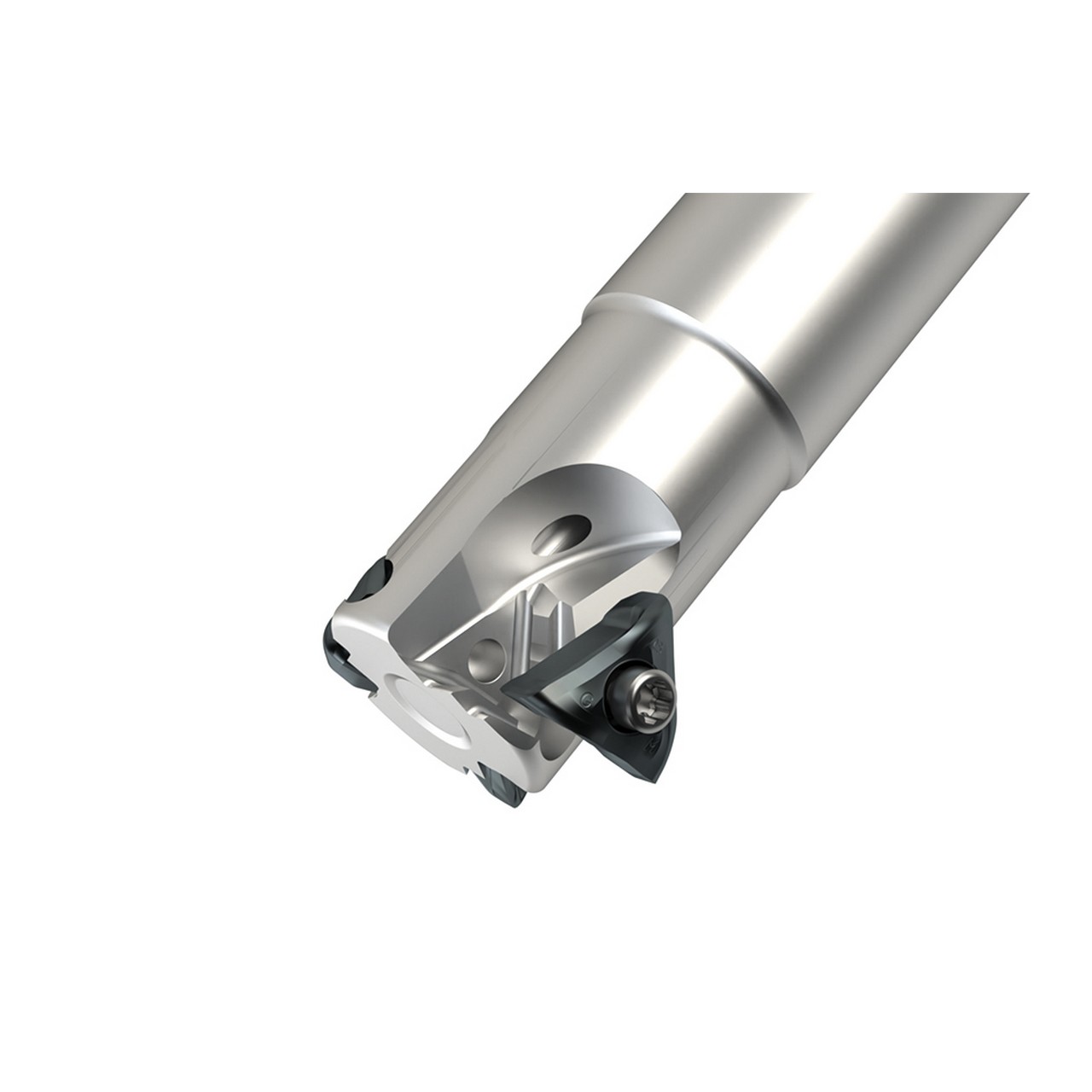

Kyocera Precision Tools TMA40002 | TOMT060508ERSM CA6535 0.283" Circle Diameter x 0.224" Thickness CVD Coated Carbide Milling Insert

Kyocera Precision Tools TMA40002 | TOMT060508ERSM CA6535 0.283" Circle Diameter x 0.224" Thickness CVD Coated Carbide Milling Insert

Name: Kyocera Precision Tools TMA40002 | TOMT060508ERSM CA6535 0.283" Circle Diameter x 0.224" Thickness CVD Coated Carbide Milling Insert
Brand: Kyocera Precision Tools
SKU: 23246707
Availability: InStock

SKU: 23246707 Weight: 0.10 LBS Minimum Purchase: 10 unit

UPC:

$30.44 $17.66

(You save $12.78)

Total Price: $17.66

Quantity:

Shipping: Calculated at Checkout

About This Item

Insert for contouring, facing, helical milling, plunging, pocketing, ramping, shouldering, slotting
Honed edge/low cutting force with 3 cutting edges
high heat resistance and wear resistance with CVD coating with improved stability due to thin film coating
Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

Product Specifications

EDP Number	TMA40002
Insert Included Angle (Degree)	60 Degree
Inscribed Circle (Inch)	0.283"
[IC] Inscribed Circle (mm)	7.20mm
[RE] Corner Radius (Inch)	1/32"
[RE] Corner Radius (mm)	0.80mm
[S] Thickness (Inch)	0.224"
[S] Thickness (mm)	5.70mm
Application	Contouring \| Facing \| Helical Milling \| Plunging \| Pocketing \| Ramping \| Shouldering \| Slotting
Chipbreaker	ER-SM
Coating Process	CVD
