Kyocera Precision Tools TME06350 | TNMG332ZS CA320 3/8" Circle Diameter x 3/16" Thickness CVD Coated Carbide Indexable Turning Insert

$13.74 $7.97
(You save $5.77)
Brand:
Kyocera Precision Tools
Insert Style:
TNMG
Insert Size:
332
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
CA320
interval quantity:
10
SKU:
23247285
UPC:
Weight:
0.19 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

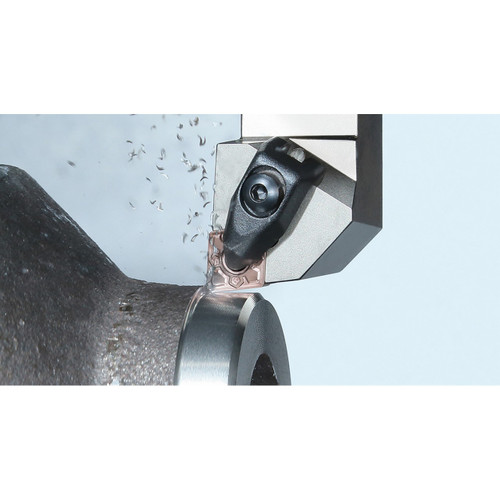

  • Insert for external turning, facing, copying, chamfering, boring
  • Cast iron with 6 cutting edges
  • Improved stability with CVD layer structure with high adhesion and long tool life during heavily interrupted or high-speed machining
  • Application: Roughing to heavy interrupted cutting of nodular cast iron

Product Specifications
EDP NumberTME06350
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Chamfering | Copying | External Turning | Facing
ChipbreakerZS
Coating ProcessCVD
Cutting RangeRoughing
HandNeutral
Insert GradeCA320
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size332
MaterialCarbide
Number of Cutting Edges6
Primary Workpiece MaterialNodular Cast Iron (K)
Usage ClassificationHeavy Interruption
