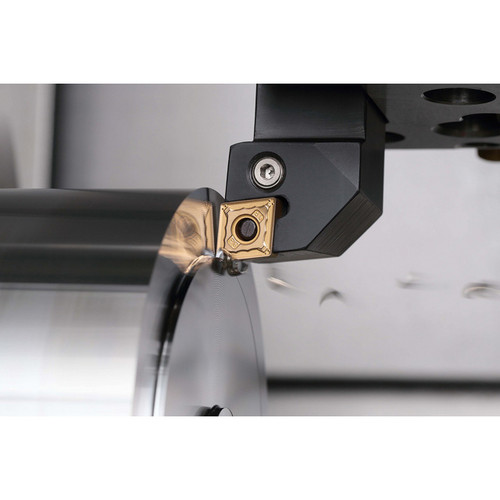

Kyocera Precision Tools TMH00135 | CNMM433PXCA025P 1/2" Inscribed Circle x 3/16" Thickness x 3/64" Radius x 80 Degree Included Angle 2 Flute CVD Coated Carbide ISOI Indexable Turning Insert

SKU: 23247527 Weight: 0.24 LBS Minimum Purchase: 10 unit
UPC:
$28.64 $16.61
(You save $12.03)
Total Price: $16.61
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, facing, boring, internal facing
  • High feed rate/single sided with 2 cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
  • Application: General to interrupted machining of steel

Product Specifications
EDP NumberTMH00135
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)3/64"
Corner Radius (mm)1.20mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | External Turning | Facing | Internal Facing
ChipbreakerPX
Coating ProcessCVD
Cutting RangeRoughing
HandNeutral
Insert GradeCA025P
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size433
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
