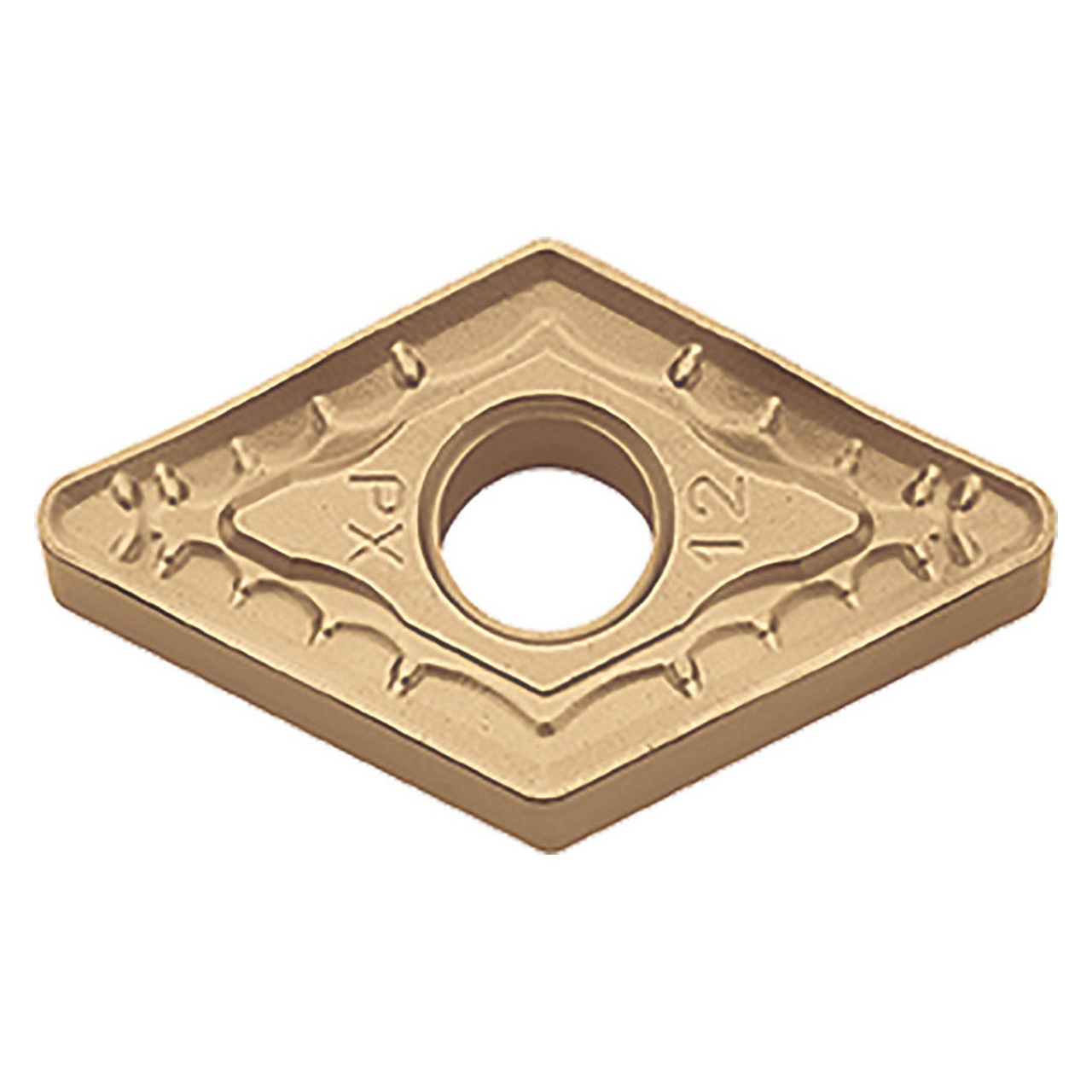

Kyocera Precision Tools TMH00209 | DNMM443PXCA025P 1/2" Inscribed Circle x 1/4" Thickness x 3/64" Radius x 55 Degree Included Angle 2 Flute CVD Coated Carbide ISOI Indexable Turning Insert

SKU: 23247601 Weight: 0.40 LBS Minimum Purchase: 10 unit
UPC:
$36.21 $21.00
(You save $15.21)
Total Price: $21.00
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, copying, boring
  • High feed rate/single sided with 2 cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
  • Application: General to interrupted machining of steel

Product Specifications
EDP NumberTMH00209
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)3/64"
Corner Radius (mm)1.20mm
Thickness (Inch)1/4"
Thickness (mm)6.35mm
ApplicationBoring | Copying | External Turning
ChipbreakerPX
Coating ProcessCVD
Cutting RangeRoughing
HandNeutral
Insert GradeCA025P
Insert Holding MethodScrew or Clamp
Insert Shape55 Degree Diamond
Insert Included Angle ( Degree)55 Degree
Insert Size443
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
