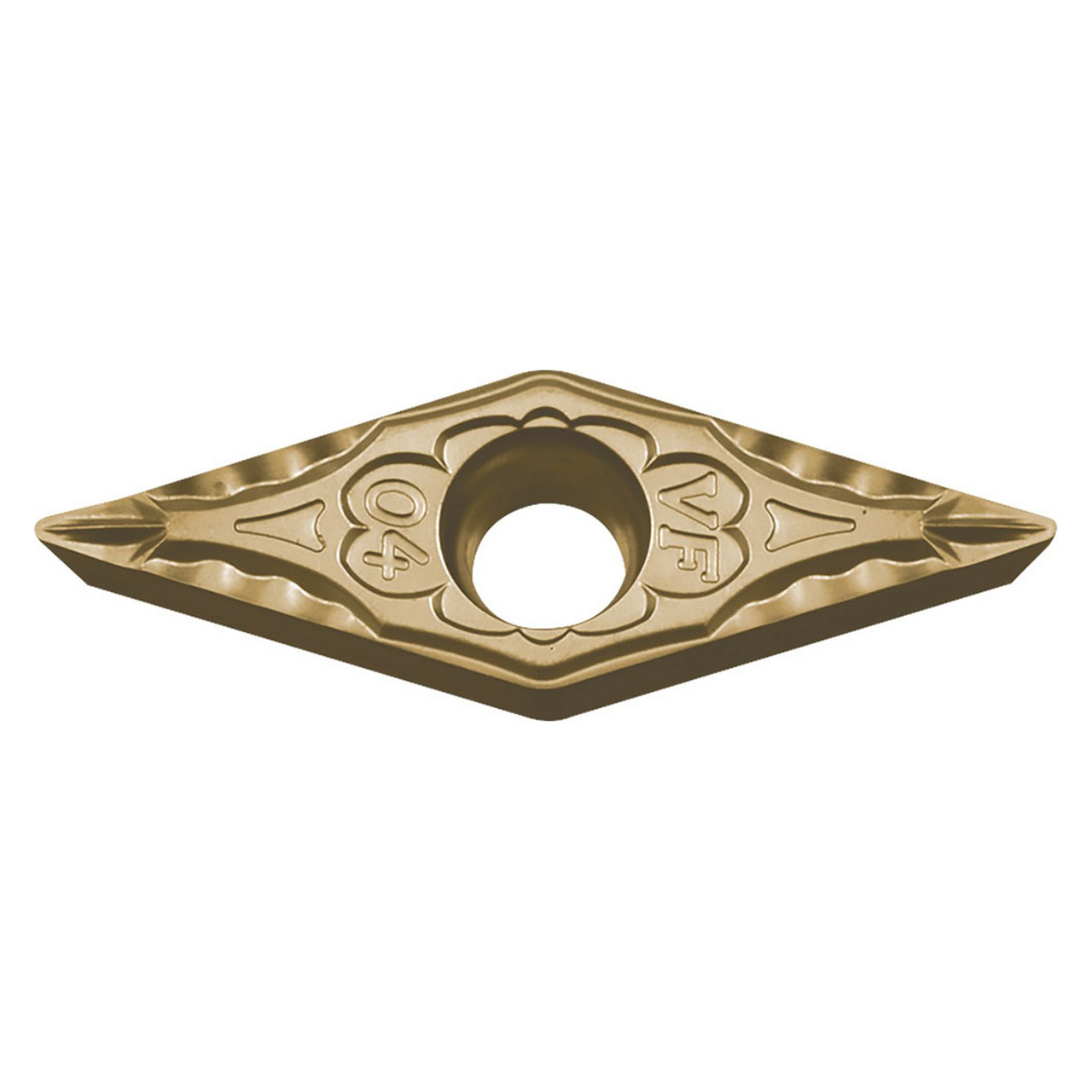

Kyocera Precision Tools TMH00510 | VBMT221VF CA025P 1/4" Circle Diameter x 1/8" Thickness CVD Coated Carbide Indexable Turning Insert

SKU: 23247902 Weight: 0.09 LBS Minimum Purchase: 10 unit
UPC:
$37.55 $21.78
(You save $15.77)
Total Price: $21.78
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
  • 2 Cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
  • Application: General to interrupted machining of steel

Product Specifications
EDP NumberTMH00510
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationBack Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting
ChipbreakerVF
Coating ProcessCVD
Cutting RangeFinishing
HandNeutral
Insert GradeCA025P
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size221
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
