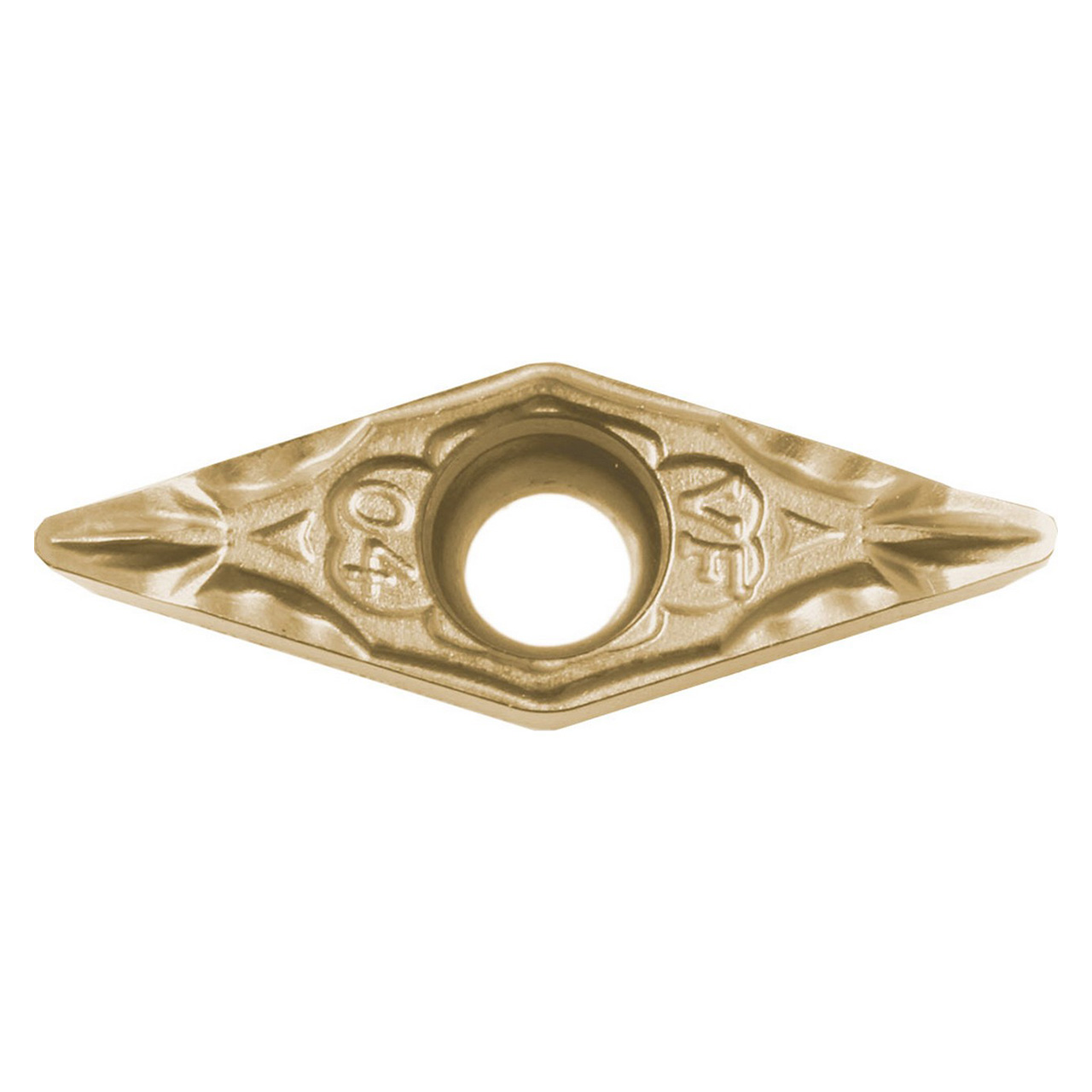

Kyocera Precision Tools TMH00525 | VCMT151505VF CA025P 3/16" Circle Diameter x 3/32" Thickness CVD Coated Carbide Indexable Turning Insert

SKU: 23247917 Weight: 0.05 LBS Minimum Purchase: 10 unit
UPC:
$34.14 $19.80
(You save $14.34)
Total Price: $19.80
Shipping: Calculated at Checkout

About This Item

Features:

  • Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
  • 2 Cutting edges
  • Thickened alumina with good thermal resistance (twice as thick as conventional coating) and specialized post-coating process prevents adhesion.
  • Application: General to interrupted machining of steel

Product Specifications
EDP NumberTMH00525
Inscribed Circle (Inch)3/16"
Inscribed Circle (mm)4.76mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBack Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting
ChipbreakerVF
Coating ProcessCVD
Cutting RangeFinishing
HandNeutral
Insert GradeCA025P
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size151505
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
