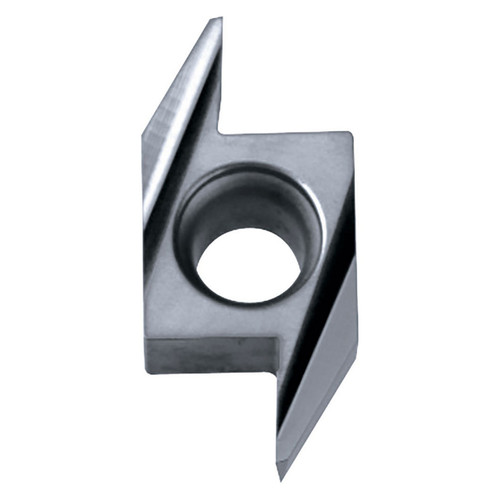

Kyocera Precision Tools TSB01660 | ABW15R4005 TC60 0.2756 Circle Diameter x 5/32" Thickness Uncoated Cermet Indexable Turning Insert

$34.57 $20.05
(You save $14.52)
Brand:
Kyocera Precision Tools
Insert Style:
ABW
Insert Size:
15-4005
Material:
Cermet;Thickness (Inch)=5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Manufacturer's Grade:
TC60
interval quantity:
10
SKU:
23248900
UPC:
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for back turning
  • 2 Cutting edges
  • Excellent surface finish cermet grade for stable machining
  • Application: For milling, grooving, and threading of steel and stainless steel

Product Specifications
EDP NumberTSB01660
Cutting Width (Decimal Inch)0.2756"
Cutting Width (mm)7.00mm
Cutting Width Minimum (Decimal Inch)0.2756"
Cutting Width Minimum (mm)7.00mm
Cutting Width Maximum (Decimal Inch)0.2756"
Cutting Width Maximum (mm)7.00mm
Insert Length (Decimal Inch)0.6063"
Insert Length (mm)15.40mm
Corner Radius (Inch)0.002"
Corner Radius (mm)0.05mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationBack Turning
Coating ProcessUncoated
Cutting RangeFinishing
HandRight Hand
Insert GradeTC60
Insert Holding MethodScrew or Clamp
Insert ShapeIrregular
Insert Size15-4005
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
