Features:
| EDP Number | TSJ02540 |
| Inscribed Circle (Inch) | 1/4" |
| Inscribed Circle (mm) | 6.35mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Grade | TN60 |
| Insert Holding Method | Screw or Clamp |

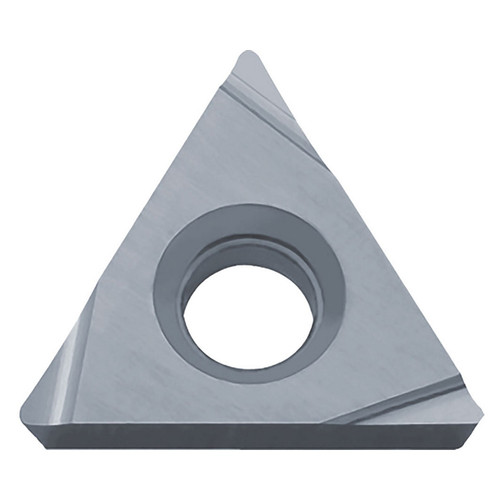

| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 222 |
| Material | Cermet |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Continuous |
