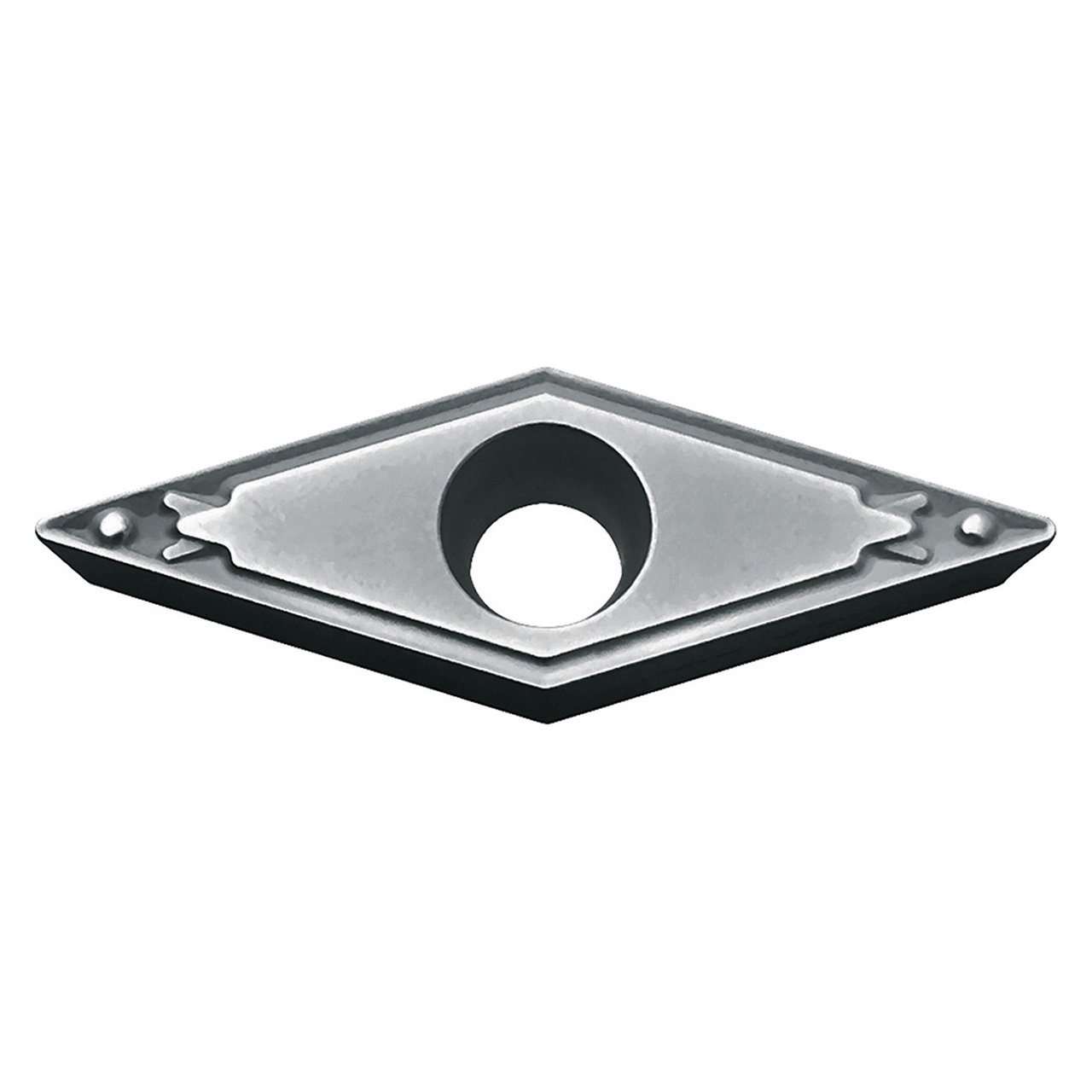

Features:
- Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
- 2 Cutting edges
- General purpose cermet with superior wear resistance and toughness
- Application: Cutting of steel and stainless steel
Product Specifications
| EDP Number | TSJ03130 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
| Chipbreaker | HQ |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | TN60 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 35 Degree Diamond |
| Insert Included Angle ( Degree) | 35 Degree |
| Insert Size | 332 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
VBMT
Insert Size:
332
Material:
Cermet;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
TN60
