Features:

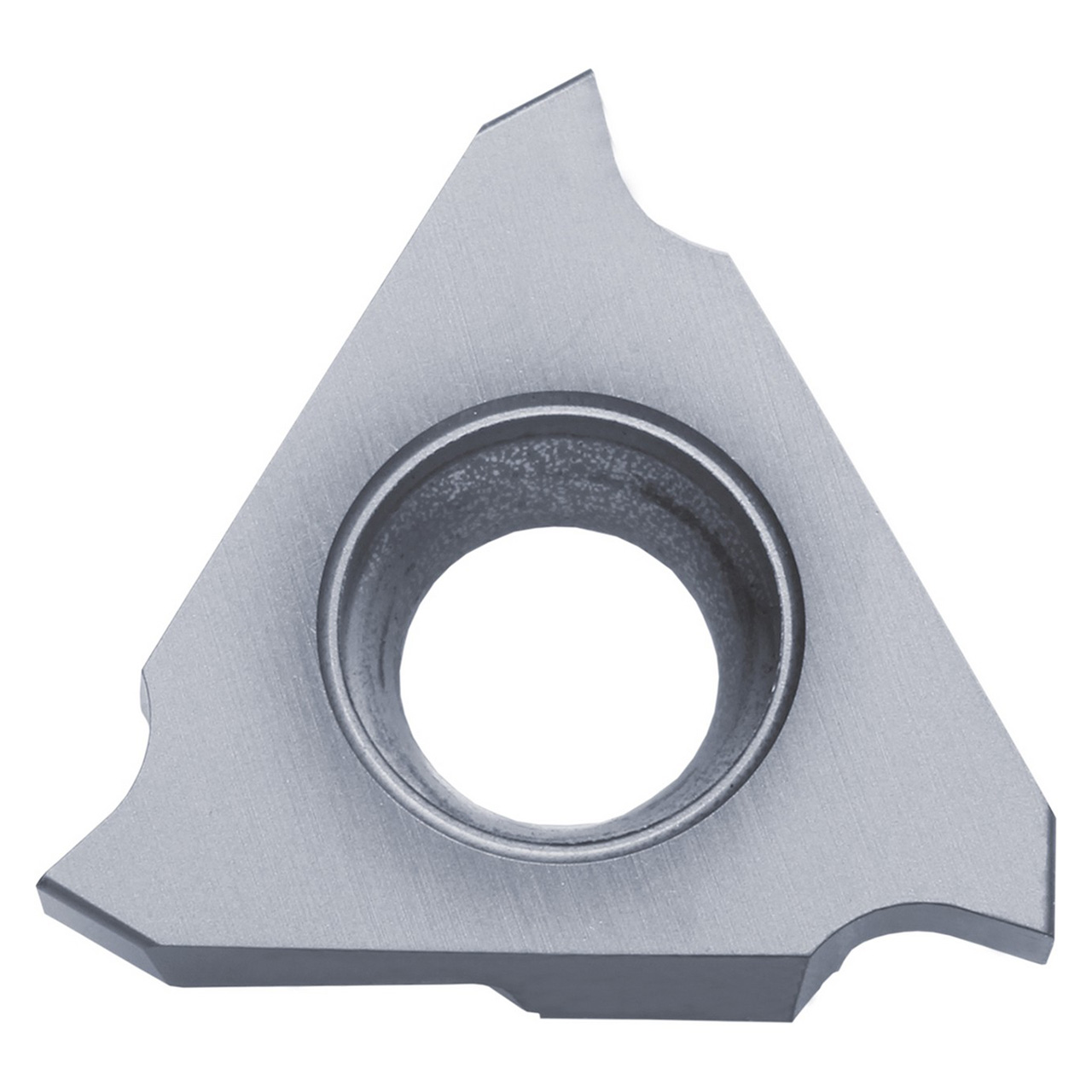

- Insert for external grooving
- 3 Cutting edges
- Cermet with great surface finish eliminates many secondary operations

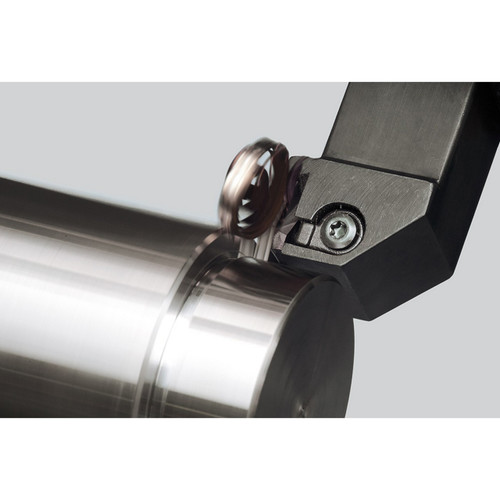

- Application: For grooving and cut-off of steel
Product Specifications
| Tool Number | TSO09009 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0374" |
| Cutting Width (mm) | 0.95mm |
| Cutting Width Minimum (Decimal Inch) | 0.0374" |
| Cutting Width Minimum (mm) | 0.95mm |
| Cutting Width Maximum (Decimal Inch) | 0.0374" |
| Cutting Width Maximum (mm) | 0.95mm |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | TN90 |
| Insert Size | 32 |
| Material | Cermet |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
32
Material:
Cermet;Cutting Width (Decimal Inch)=0.0374"""
Cutting Width (mm):
0.95mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
TN90
Finish/Coating:
Uncoated
