Features:

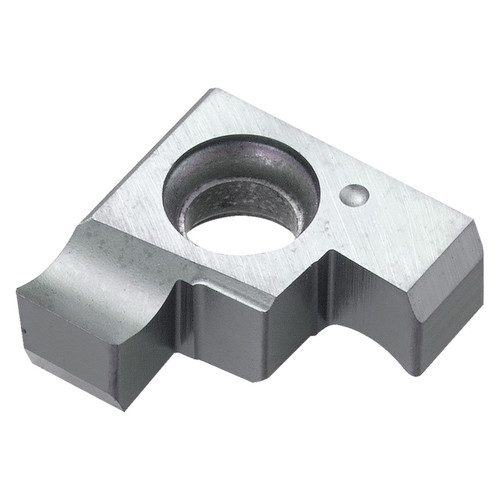

| Tool Number | TSQ16835 |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Insert Length (Decimal Inch) | 0.3228" |
| Insert Length (mm) | 8.20mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | Internal Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | TN6020 |
| Insert Size | 150010 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
