Features:
| Tool Number | TSQ17016 |
| Max Depth of Cut (Decimal Inch) | 0.0984" |
| Max Depth of Cut (mm) | 2.50mm |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.4520" |
| Insert Length (mm) | 11.48mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.159" |
| Thickness (mm) | 4.05mm |

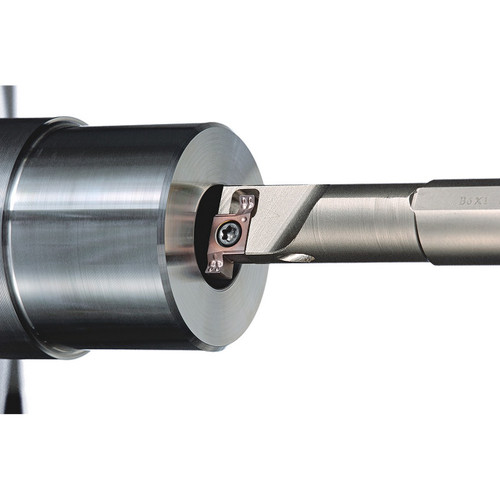

| Application | Internal Grooving |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | TN6020 |
| Insert Size | 300020 |
| Material | Cermet |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
