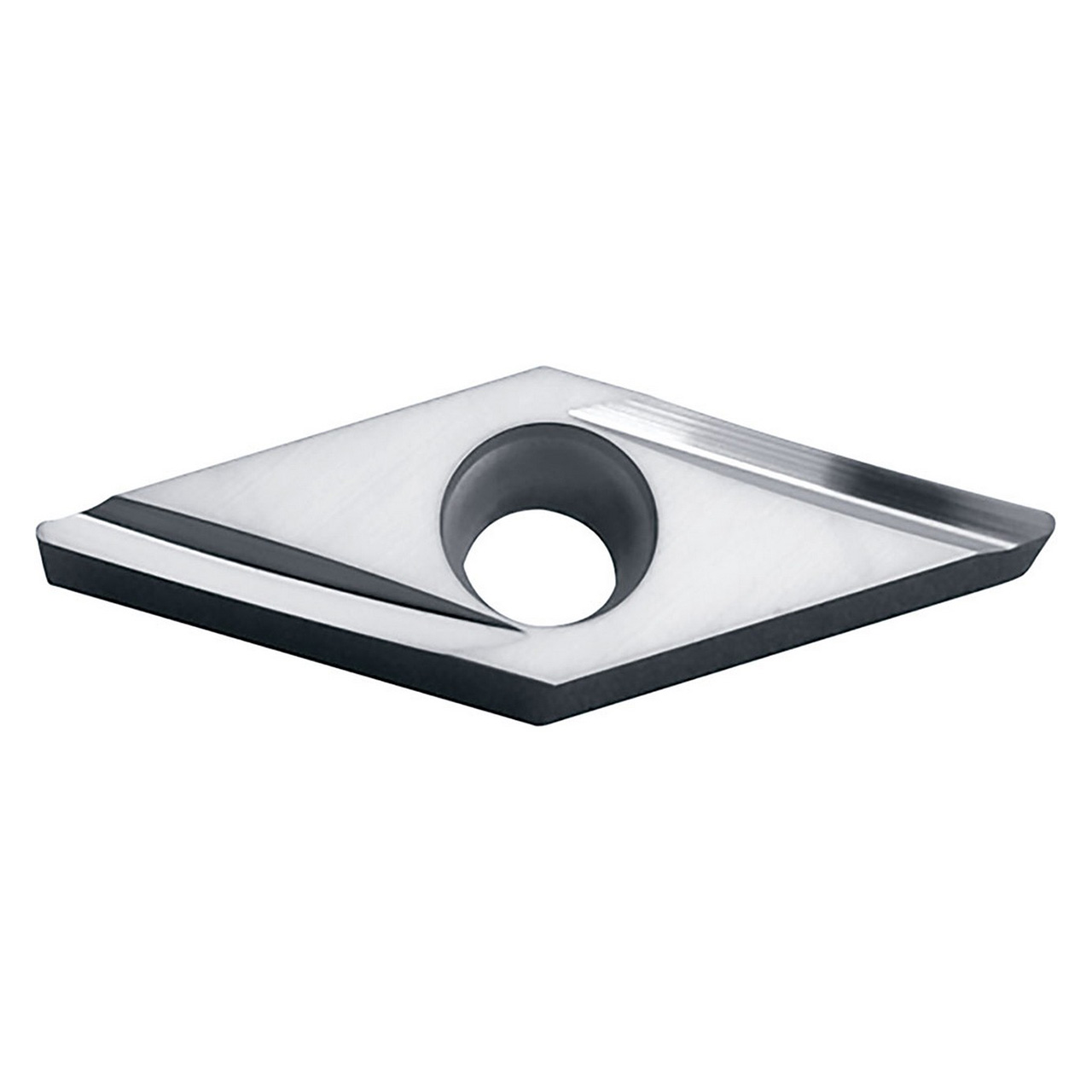

Features:
- Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
- 2 Cutting edges
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Application: Recommended cermet for stable steel machining and high quality surface finish
Product Specifications
EDP Number | TSR07467 |
Inscribed Circle (Inch) | 1/4" |
Inscribed Circle (mm) | 6.35mm |
Corner Radius (Inch) | 1/64" |
Corner Radius (mm) | 0.40mm |
Thickness (Inch) | 1/8" |
Thickness (mm) | 3.18mm |
Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
Chipbreaker | Y |
Coating Process | Uncoated |
Cutting Range | Finishing Medium |
Hand | Right Hand |
Insert Grade | TN620 |
Insert Holding Method | Screw or Clamp |
Insert Shape | 35 Degree Diamond |
Insert Included Angle ( Degree) | 35 Degree |
Insert Size | 221 |
Material | Cermet |
Number of Cutting Edges | 2 |
Primary Workpiece Material | Carbon/Alloy Steel (P) |
Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
VBGT
Insert Size:
221
Material:
Cermet;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
TN620
