Features:
- Insert for Cut-Off
- 1 Cutting edge
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Application: Recommended cermet for stable steel machining and high quality surface finish
Product Specifications

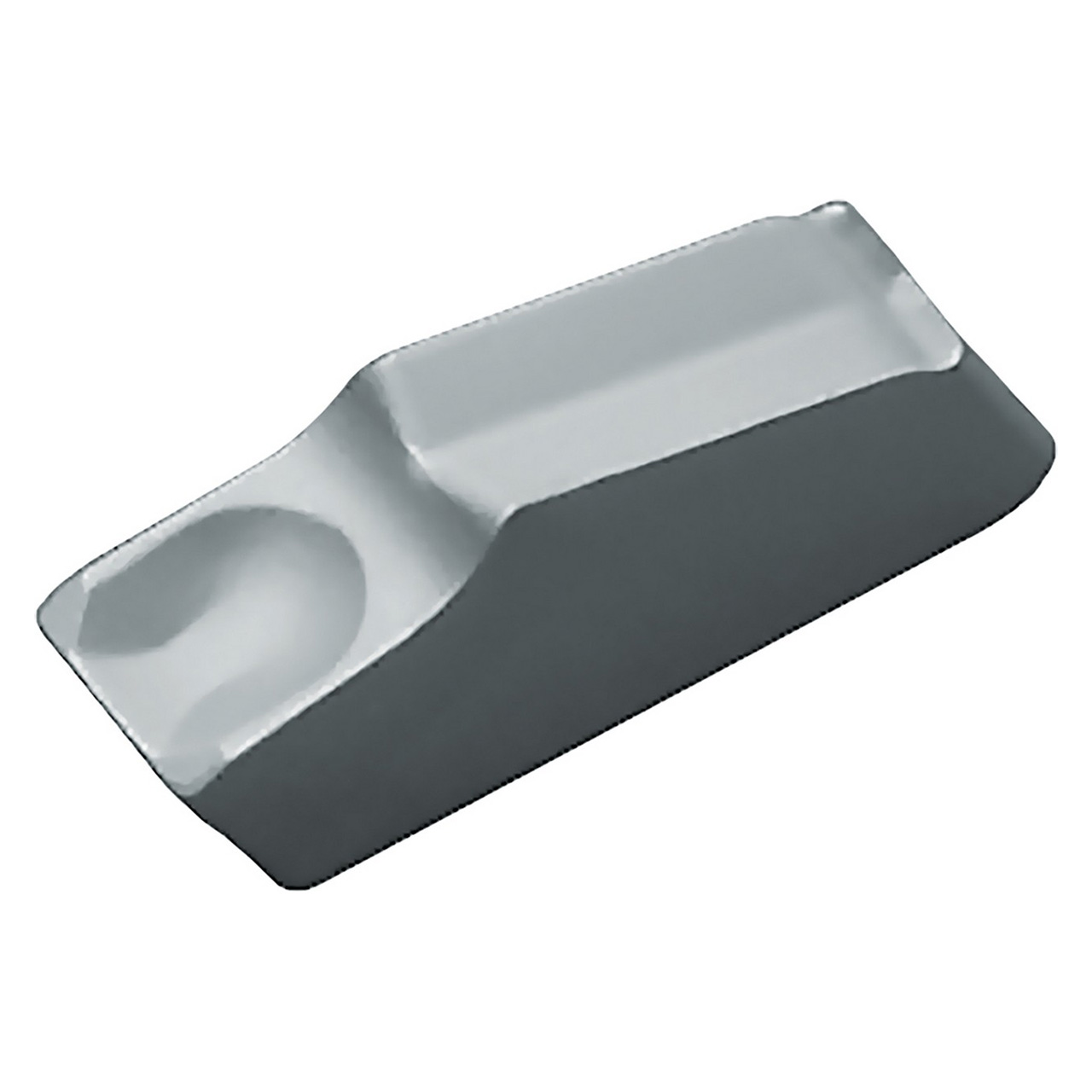

| Tool Number | TSR15150 |
| Cutting Width (Decimal Inch) | 0.1221" |
| Cutting Width (mm) | 3.10mm |
| Cutting Width Minimum (Decimal Inch) | 0.1221" |
| Cutting Width Minimum (mm) | 3.10mm |
| Cutting Width Maximum (Decimal Inch) | 0.1221" |
| Cutting Width Maximum (mm) | 3.10mm |
| Corner Radius (Inch) | 0.010" |
| Corner Radius (mm) | 0.25mm |
| Application | Cut-Off |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Holding Method | Self Clamp |
| Insert Grade | TN620 |
| Insert Size | 3 |
| Material | Cermet |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Cermet;Insert Style=TKN"
Insert Size:
3
Lead Angle Direction:
Neutral
Cutting Width (Decimal Inch):
0.1221"
Cutting Width (mm):
3.10mm
Manufacturer's Grade:
TN620
Series:
KTKC
