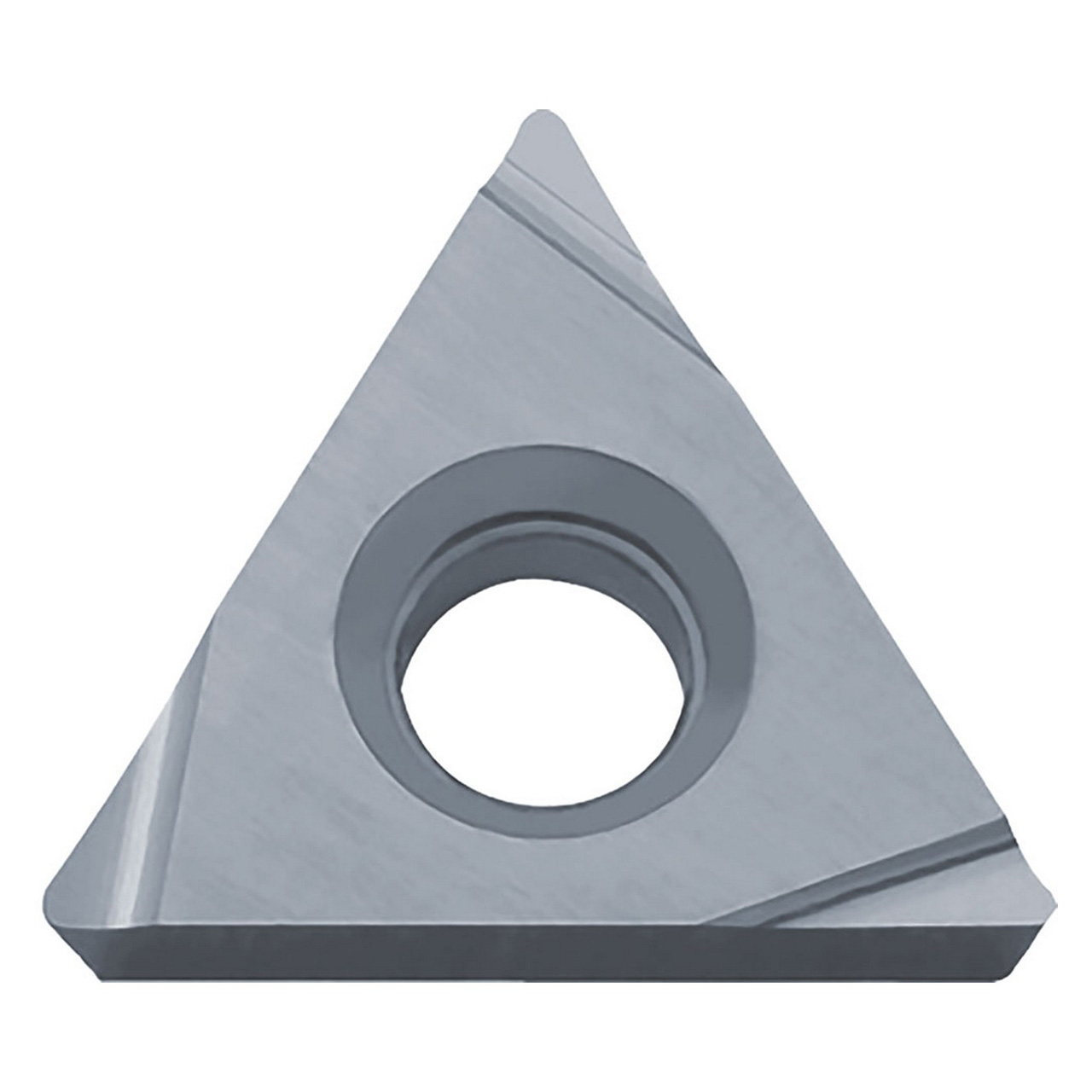

Features:
- Insert for external turning, boring, internal facing, copying, back boring
- 3 Cutting edges
- Three hybrid technology attributes maintain superior surface finish and machining stability
- Application: Stable machining of steel
Product Specifications
| EDP Number | TSS06864 |
| Inscribed Circle (Inch) | 7/32" |
| Inscribed Circle (mm) | 5.56mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Grade | TN610 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 181505 |
| Material | Cermet |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TPGH
Insert Size:
181505
Material:
Cermet;Inscribed Circle (Inch)=7/32"""
Inscribed Circle (Decimal Inch):
0.2189"
Inscribed Circle (mm):
5.56mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
TN610
