Features:

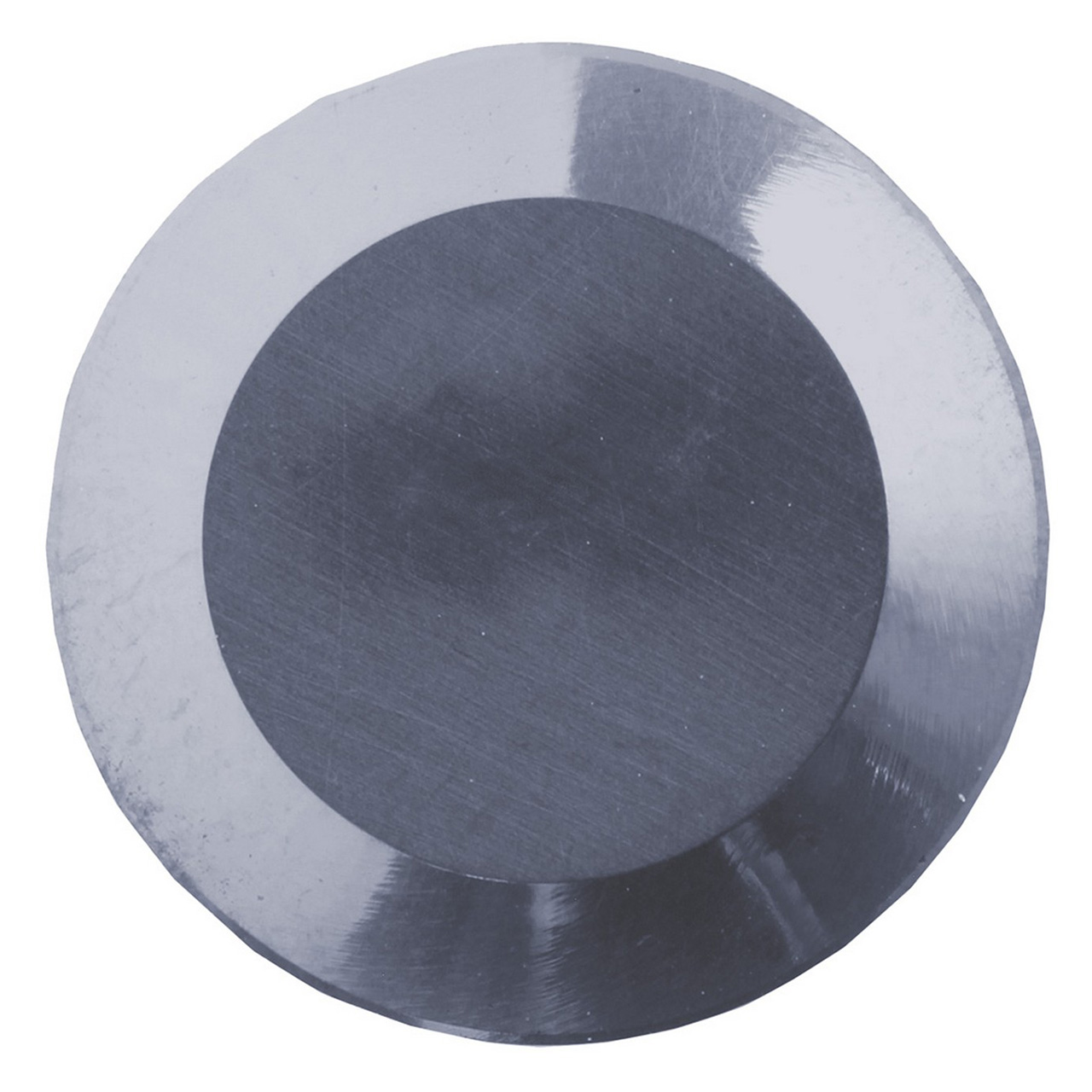

- Insert for external turning, facing, undercutting, roll machining
- SiAlON Ceramic with superior wear resistance and high resistance against boundary wear
- Application: Finishing to medium machining of heat-resistant alloys
Product Specifications
| EDP Number | TTA04112 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Thickness (Inch) | 0.315" |
| Thickness (mm) | 8.00mm |
| Application | External Turning | Facing | Roll Machining | Undercutting |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | KS6030 |
| Insert Holding Method | Clamp |
| Insert Shape | Round |
| Insert Size | 35 |
| Material | Ceramic |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
RCGX
Insert Size:
35
Material:
Ceramic;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.3150"
Thickness (mm):
8.00mm
Manufacturer's Grade:
KS6030
