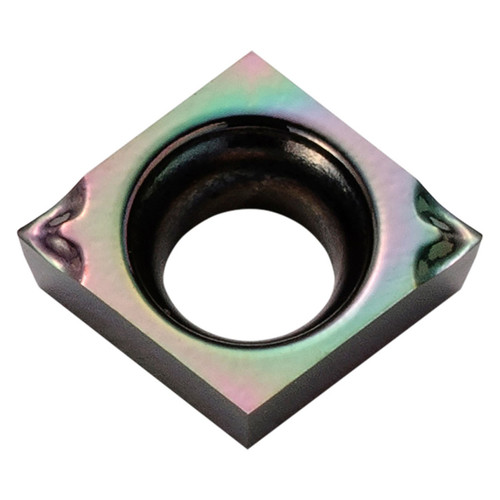

Features:
- Insert for external turning, facing, boring, internal facing, sub-spindle
- Sharp edge with 2 cutting edges
- ISO identification symbol K carbide (K10 relevant)
- Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Product Specifications
| EDP Number | TWE00003 |
| Inscribed Circle (Inch) | 0.138" |
| Inscribed Circle (mm) | 3.50mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 0.055" |
| Thickness (mm) | 1.40mm |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle |
| Chipbreaker | F |
| Coating Process | Uncoated |
| Cutting Range | Medium |
| Hand | Left Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 110902 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CCGT
Insert Size:
110902
Material:
Carbide;Inscribed Circle (Decimal Inch)=0.1380"""
Inscribed Circle (mm):
3.50mm
Thickness (Decimal Inch):
0.0550"
Thickness (mm):
1.40mm
Corner Radius (Decimal Inch):
0.0040"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
KW10
