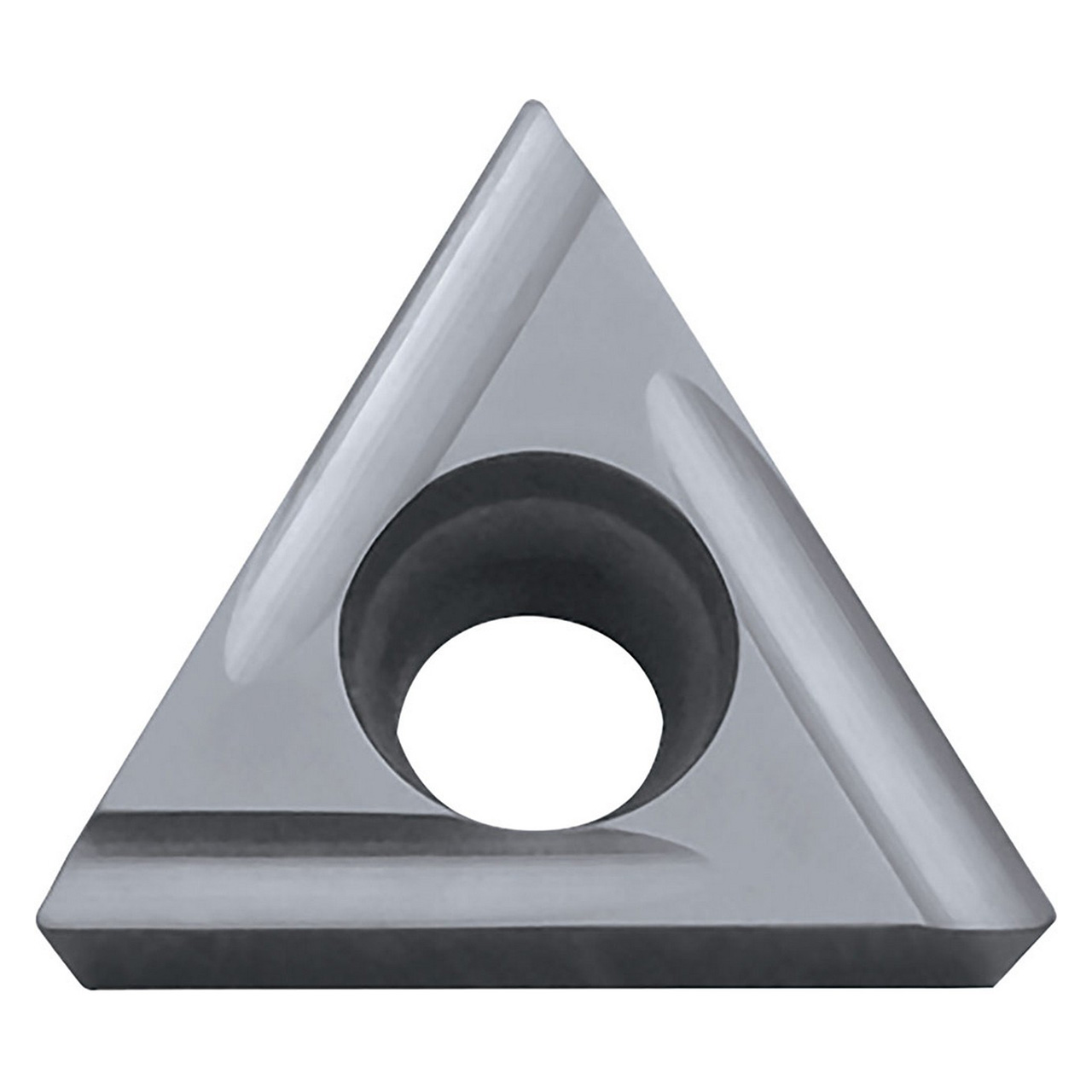

Kyocera Precision Tools TWE00480 | TCGT2202FRU KW10 1/4" Circle Diameter x 1/8" Thickness Uncoated Carbide Indexable Turning Insert

$30.54 $17.71
(You save $12.83)
Brand:
Kyocera Precision Tools
Insert Style:
TCGT
Insert Size:
2202
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Decimal Inch):
0.0040"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
KW10
interval quantity:
10
SKU:
23251749
UPC:
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning
  • Sharp edge with 3 cutting edges
  • ISO identification symbol K carbide (K10 relevant)
  • Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Product Specifications
EDP NumberTWE00480
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Turning
ChipbreakerU
Coating ProcessUncoated
Cutting RangeFinishing
HandRight Hand
Insert GradeKW10
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size2202
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialNon-Ferrous Materials (N) | Titanium Alloy (S)
Usage ClassificationLight Interruption
