Features:
| EDP Number | TWE04651 |
| Inscribed Circle (Inch) | 5/16" |
| Inscribed Circle (mm) | 7.94mm |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (mm) | 0.40mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Boring | Internal Facing |
| Chipbreaker | Y |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Left Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw or Clamp |

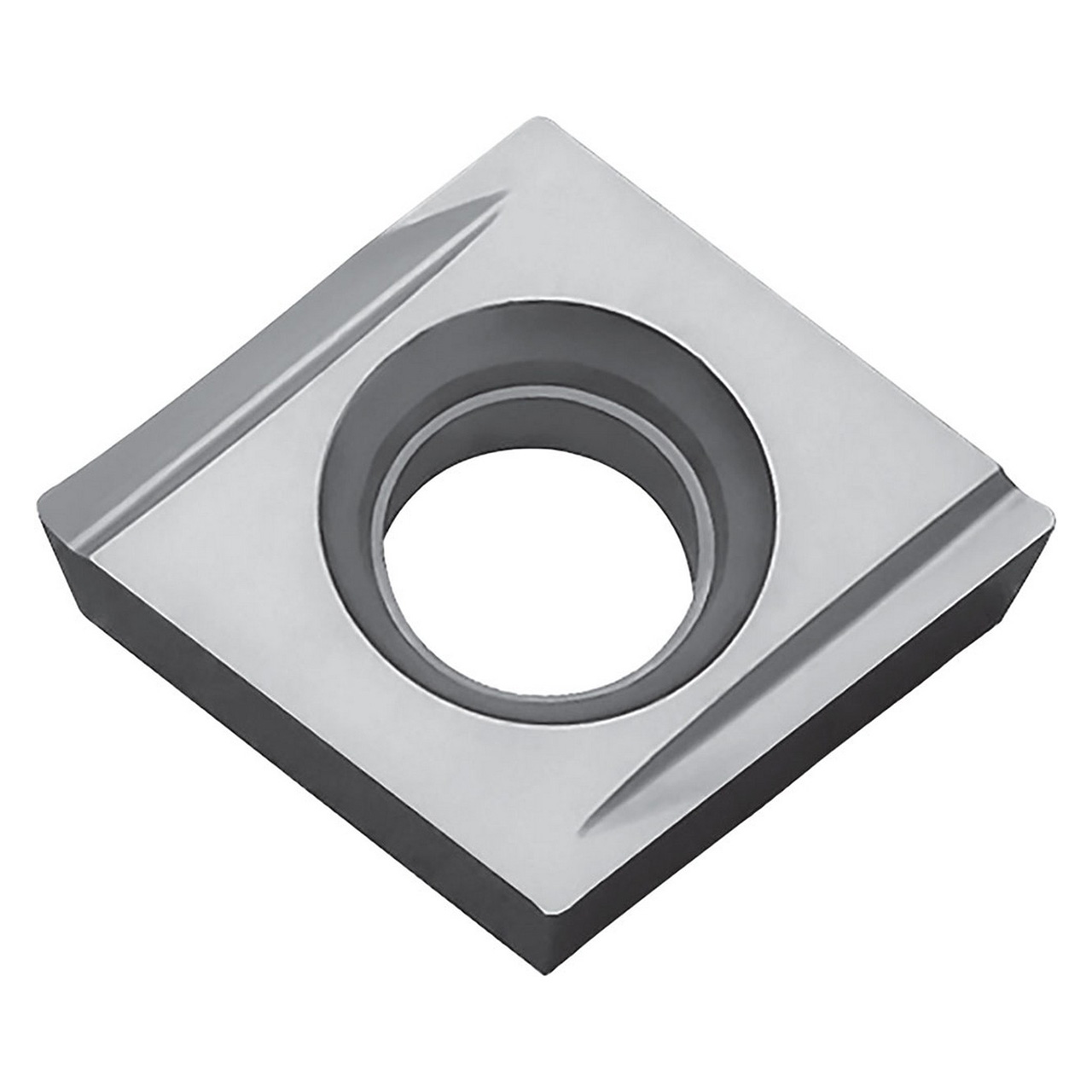

| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 25151 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Materials (N) | Titanium Alloy (S) |
| Usage Classification | Light Interruption |
