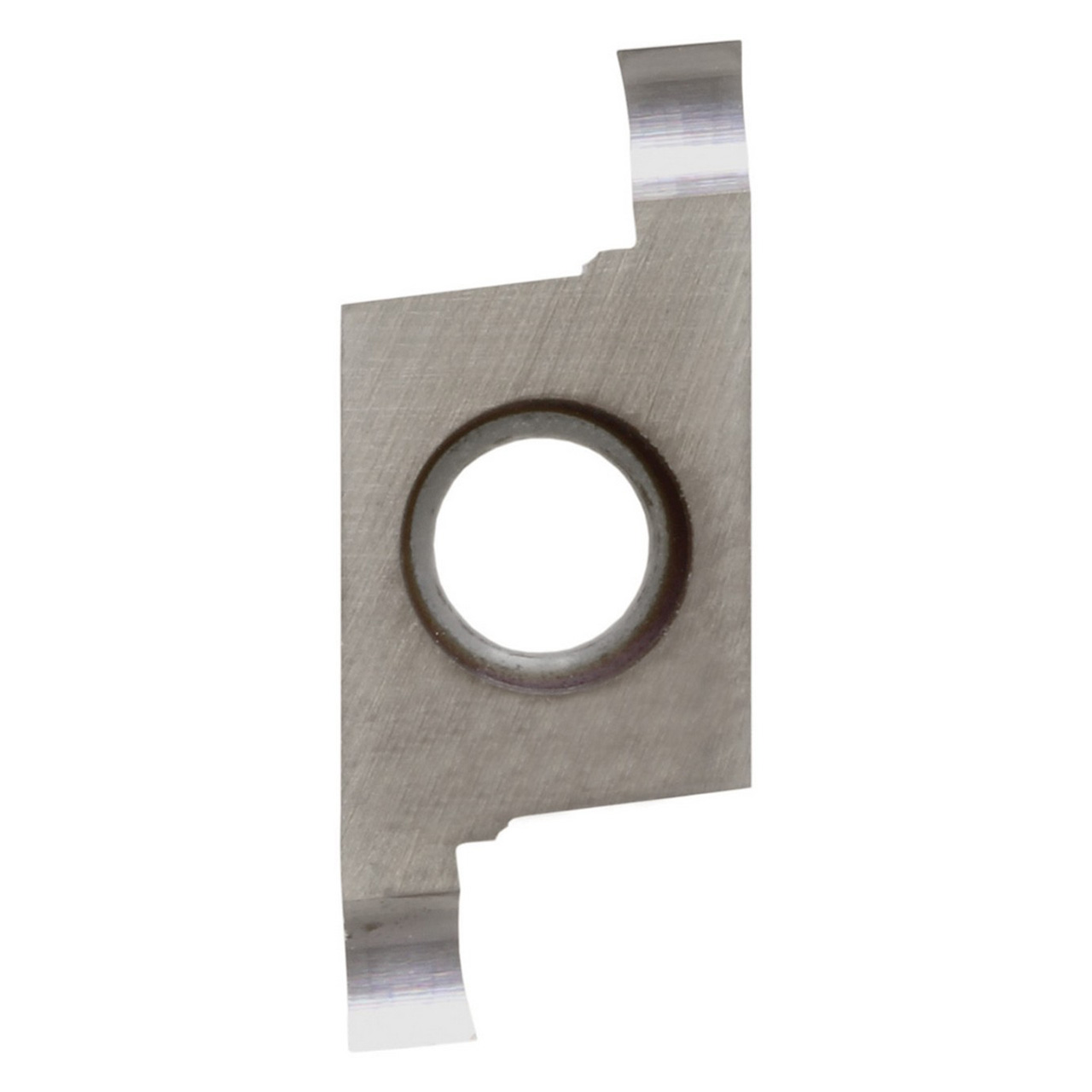

Kyocera Precision Tools TWE17200 | TWFGL050 KW10 0.0394" Max Cut of Depth x 0.0197" Width x 0.6299" Insert Length Uncoated Carbide Micro Face Grooving Bar

$62.81
Brand:
Kyocera Precision Tools
Toolholder Style:
TWFG
Series:
TWFG;Hand of Holder=Left-Hand"
SKU:
23252556
Weight:
0.06 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

  • Uncoated carbide KW10 grade twin bars (Horizontal type) provide efficient micro diameter face grooving of Non-ferrous metals
  • 6mm Minimum face groove diameter
  • Compatible with STWL, S-STWL sleeves

Product Specifications
EDP NumberTWE17200
Max Depth of Cut (Decimal Inch)0.0394"
Max Depth of Cut (mm)1.00mm
Cutting Width (Decimal Inch)0.0197"
Cutting Width (mm)0.50mm
Cutting Width Minimum (Decimal Inch)0.0197"
Cutting Width Minimum (mm)0.50mm
Cutting Width Maximum (Decimal Inch)0.0197"
Cutting Width Maximum (mm)0.50mm
Minimum Face Groove Diameter (Decimal Inch)0.2362''
Minimum Face Groove Diameter (mm)6.00mm
Insert Length (Decimal Inch)0.6299"
Insert Length (mm)16.00mm
Tool Entering Angle ( Degree)95 Degree
Corner Radius (Decimal Inch)0.002"
Thickness (decimal Inch)3/32"
Thickness (mm)2.38mm
ApplicationMicro Face Grooving
Coating ProcessUncoated
Grooving TypeFace Grooving
HandLeft Hand
Insert GradeKW10
Insert Holding MethodScrew
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialNon-Ferrous Materials (N)
