Features:

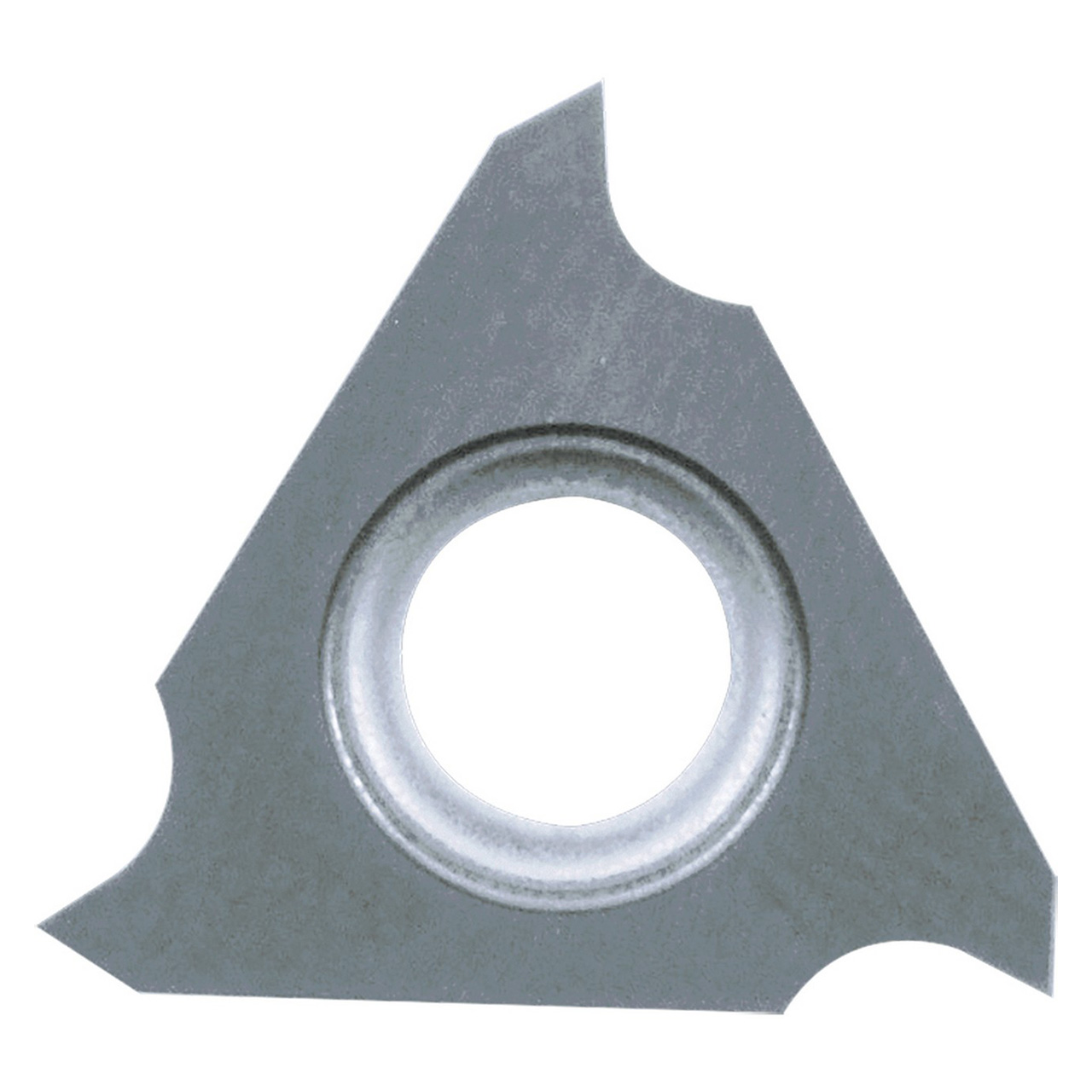

| Tool Number | TWG18707 |
| Max Depth of Cut (Decimal Inch) | 0.0315" |
| Max Depth of Cut (mm) | 0.80mm |
| Cutting Width (Decimal Inch) | 0.0118" |
| Cutting Width (mm) | 0.30mm |
| Cutting Width Minimum (Decimal Inch) | 0.0118" |
| Cutting Width Minimum (mm) | 0.30mm |
| Cutting Width Maximum (Decimal Inch) | 0.0118" |
| Cutting Width Maximum (mm) | 0.30mm |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Grooving |
| Coating Process | Uncoated |
| Cutter Pitch | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | GW15 |
| Insert Size | 32 |
| Material | Carbide |
| Number of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Light Interruption |
