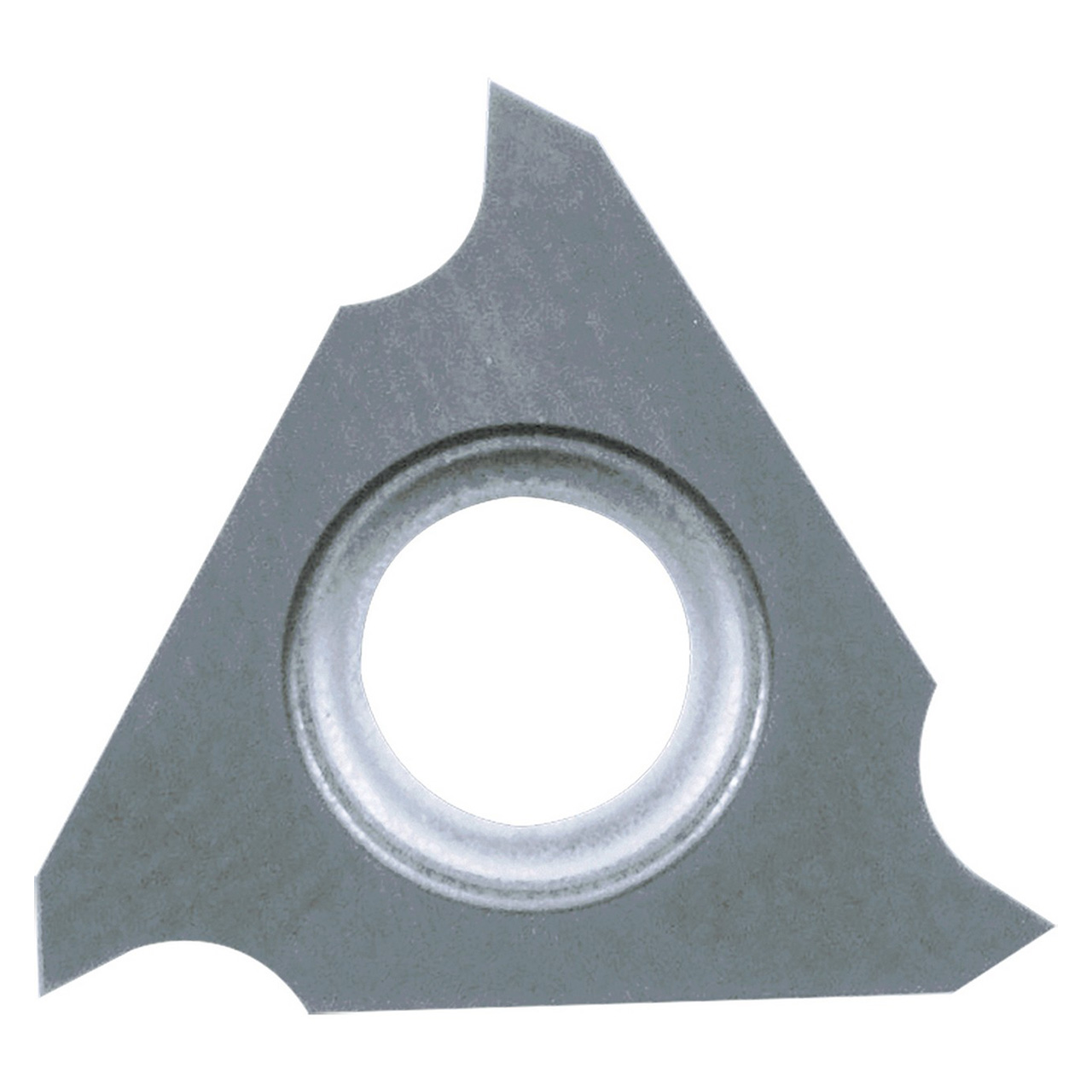

Kyocera Precision Tools TWG40037 | GBF32L120010 GW15 0.0472" Cutting Width x 1/8" Thickness Uncoated Carbide Grooving Insert

$20.06
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
120
Material:
Carbide;Cutting Width (Decimal Inch)=0.0472"""
Cutting Width (mm):
1.20mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
GW15
Finish/Coating:
Uncoated
SKU:
23252870
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
  • Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys

Product Specifications
Tool NumberTWG40037
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0472"
Cutting Width (mm)1.20mm
Cutting Width Minimum (Decimal Inch)0.0472"
Cutting Width Minimum (mm)1.20mm
Cutting Width Maximum (Decimal Inch)0.0472"
Cutting Width Maximum (mm)1.20mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
Coating ProcessUncoated
Cutter PitchPVD
Cutting RangeMedium Roughing
HandLeft Hand
Insert Holding MethodScrew
Insert GradeGW15
Insert Size120
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialGray Cast Iron (K) | Non-Ferrous Materials (N) | Heat-Resistant Alloy (S)
Usage ClassificationLight Interruption
