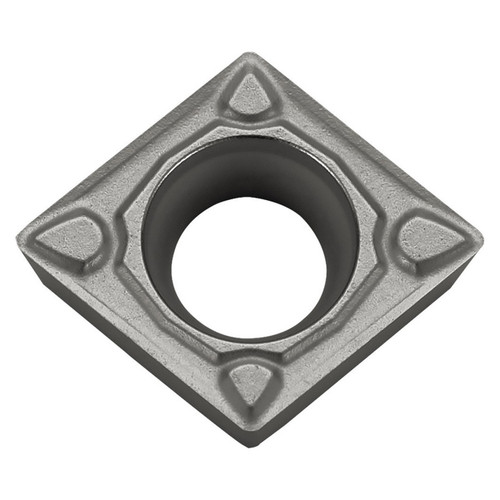

Kyocera Precision Tools TWH00492 | CCMT3252MQ SW05 3/8" Circle Diameter x 5/32" Thickness Uncoated Carbide Indexable Turning Insert

$18.02 $10.45
(You save $7.57)
Brand:
Kyocera Precision Tools
Insert Style:
CCMT
Insert Size:
3252
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
SW05
interval quantity:
10
SKU:
23252872
UPC:
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for external turning, facing, boring, internal facing
  • Stainless steel/HRSA with 2 cutting edges
  • ISO identification symbol K carbide (K05 relevant)
  • Application: Continuous cutting and finishing of titanium alloys maintaining great wear resistance

Product Specifications
EDP NumberTWH00492
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationBoring | External Turning | Facing | Internal Facing
ChipbreakerMQ
Coating ProcessUncoated
Cutter PitchPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradeSW05
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size3252
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialTitanium Alloy (S)
Usage ClassificationLight Interruption
