| Manufacturer Part Number | 13810011N |
| Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 7.000" |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.250" |
| Neck Diameter (Decimal Inch) | 0.960" |
| Neck Length (Inch) | 4-3/8" |
| Neck Length (Decimal Inch) | 4.375" |
| Helix Angle (Degree) | 36 Degree |
| Number of Flutes | 3 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Material | Carbide |
| Center Cutting | Yes |

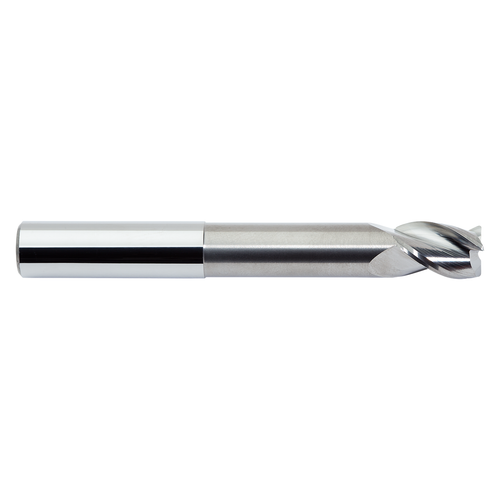

| Product Type | Square End Mill |
| Country Of Origin | USA |
