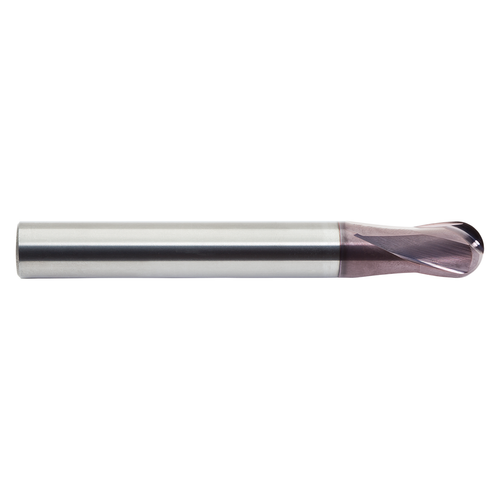

| Manufacturer Part Number | 156M0080N8A |
| Diameter (Decimal Inch) | 0.032" |
| Diameter (mm) | 0.80mm |
| Ball Radius (Decimal Inch) | 0.016" |
| Ball Radius (mm) | 0.40mm |
| Shank Diameter (Decimal Inch) | 0.158" |
| Shank Diameter (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 1.969" |
| Overall Length (mm) | 50.00mm |
| Length of Cut (Decimal Inch) | 0.020" |
| Length of Cut (mm) | 0.50mm |
| Neck Diameter (Decimal Inch) | 0.030" |
| Neck Diameter (mm) | 0.77mm |
| Neck Length (Decimal Inch) | 0.315" |
| Neck Length (mm) | 8.00mm |
| Helix Angle (Degree) | 20 Degree |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima Xtreme |
| Material | Carbide |
| Center Cutting | Yes |
| Product Type | Ball Nose End Mill |
| Country Of Origin | USA |
