| Manufacturer Part Number | 17931210A |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.313" |
| Ball Radius (Inch) | 5/32" |
| Ball Radius (Decimal Inch) | 0.156" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.813" |
| Helix Angle (Degree) | 35-38 Degree |
| Number of Flutes | 4 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima |
| Material | Carbide |
| Center Cutting | Yes |

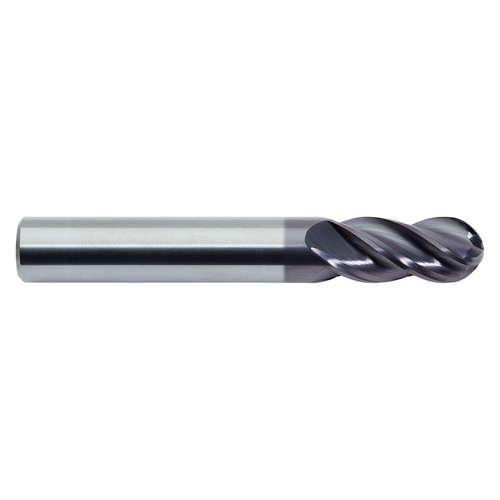

| Product Type | Ball Nose End Mill |
| Country Of Origin | USA |
