| Manufacturer Part Number | 27762500N5B |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Overall Length (Decimal Inch) | 6.000" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.750" |
| Neck Diameter (Decimal Inch) | 0.600" |
| Neck Length (Inch) | 3-1/8" |
| Neck Length (Decimal Inch) | 3.125" |
| Helix Angle (Degree) | 38-41 Degree |
| Number of Flutes | 4 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima Blaze |
| Material | Carbide |
| Center Cutting | Yes |

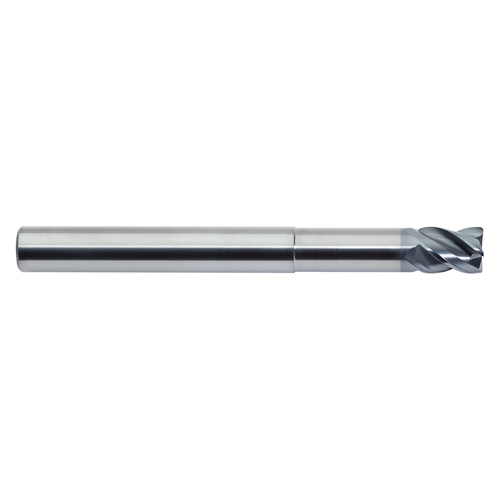

| Product Type | Square End Mill |
| Country Of Origin | USA |
