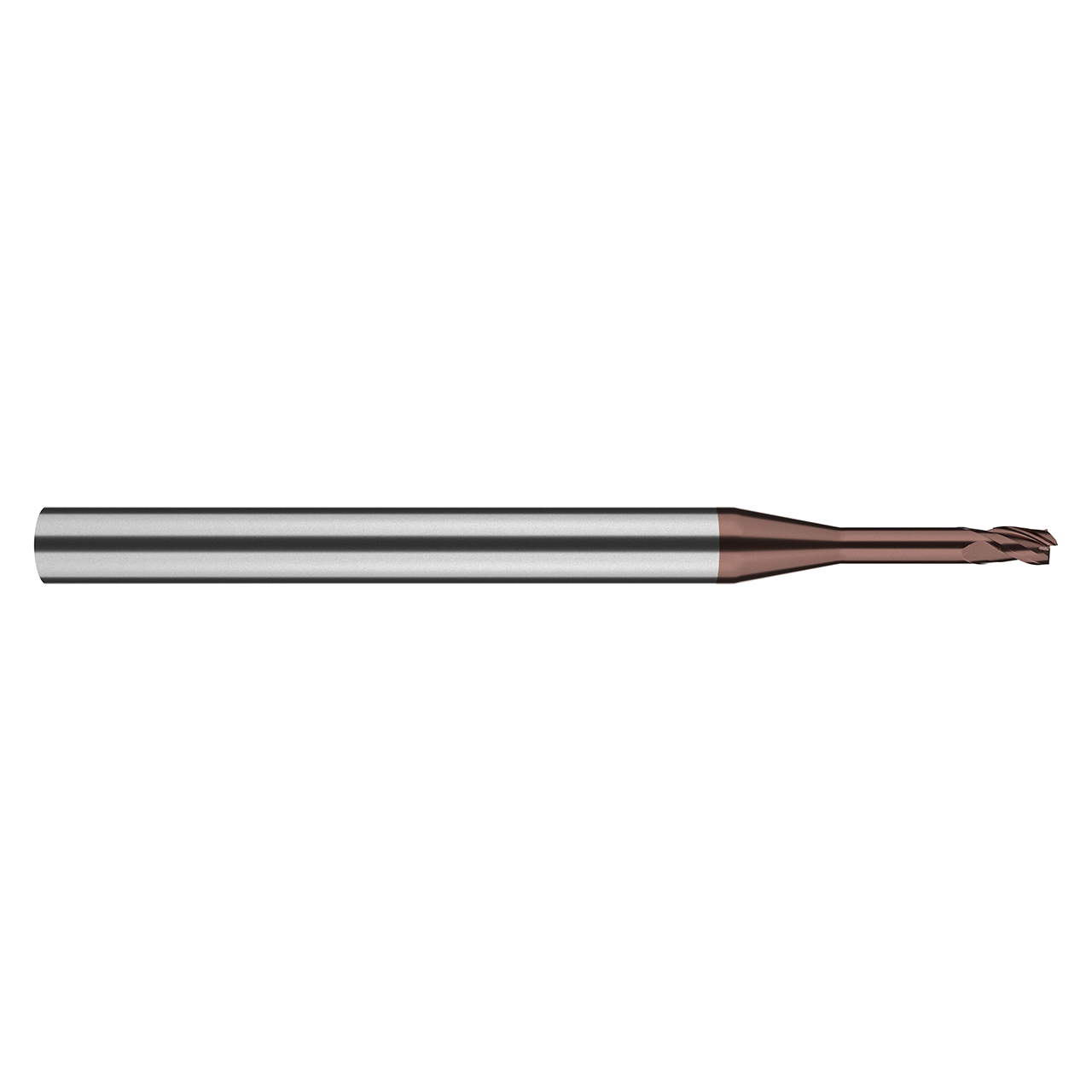

| Manufacturer Part Number | 3MVS0938N3AH |
| Diameter (Inch) | 3/32" |
| Diameter (Decimal Inch) | 0.094" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Length of Cut (Inch) | 9/64" |
| Length of Cut (Decimal Inch) | 0.141" |
| Neck Length (Decimal Inch) | 0.279" |
| Helix Angle (Degree) | 31-35 Degree |
| Number of Flutes | 3 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Coating | ALtima Xtreme |
| Material | Carbide |
| Center Cutting | Yes |
| Product Type | Square End Mill |
| Country Of Origin | USA |
