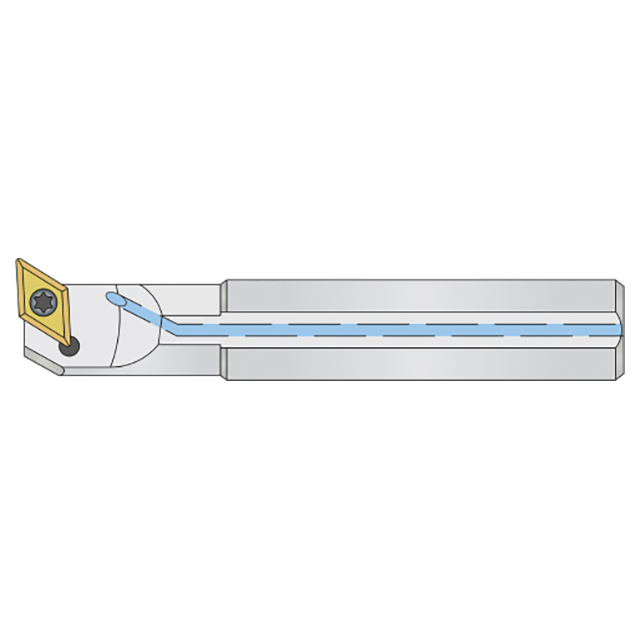

Micro 100 20-0902 | 0.425" Minimum Bore Diameter x 5/16" Shank x 3.900" OAL A05H SDQCL 2 Yes Left Hand Indexable Boring, Facing & Profiling Bar, DCMT 21.510 Insert Style

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.4250"
Hand Direction	Left Hand
Finish/Coating	Uncoated
Shank Diameter (Inch)	5/16"
Shank Diameter (Decimal Inch)	0.3125"
Centerline Offset (Decimal Inch)	0.1970"
Indexable K Angle	107.5 Degree
Indexable Nomenclature	A05H SDQCL 2
Insert Style	DCMT 21.51
Micro 100 Insert Part	50-1200
Overall Length (Decimal Inch)	3.90"
