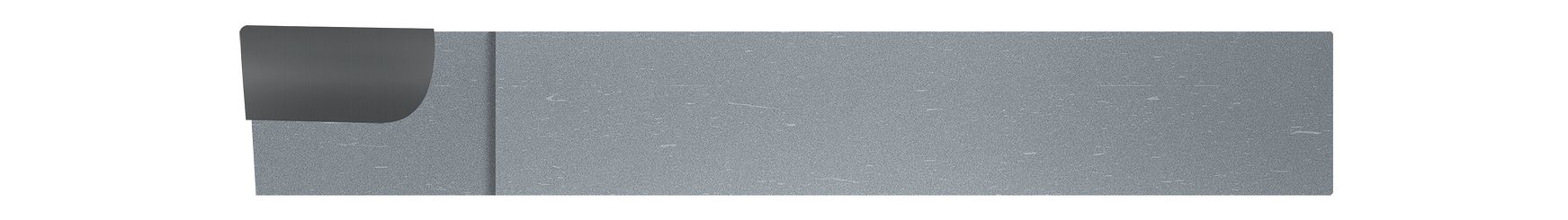

Micro 100 AL-4 | 2" OAL x 1/64" Radius AL Style Uncoated Carbide Left Hand Single-Point Tool Bit

This item is discontinued. We don't expect additional inventory in the future. Contact All Industrial for recommendations on alternative products

Ships:
From Partner Facility
Ships:
From Partner Facility
IsDiscontinued:
True
SKU:
25126846
Weight:
1.23 LBS

The hardened zinc coated shanks on Micro 100's brazed, AL style forming tools, designed for left hand turning and facing on the outside diameter (OD) in lathe applications, provide durability and corrosion resistance.

  • Designed for left hand turning and facing on the outside diameter (OD) in lathe applications
  • Ground with side rake to provide a positive cutting action and better chip evacuation
  • Corner radius profile
  • Solid carbide tipped with zinc coated steel shank for durability and corrosion resistance
  • Available in industry standard fractional shank sizes
  • Ground in the USA

Product Specifications
Hand Direction Left Hand
Finish/Coating Uncoated
Corner Radius (Inch) 0.015" (1/64)
Brazed Insert Length (Inch) 0.500" (1/2)
Brazed Insert Width (Inch) 0.238"
Overall Length (Inch) 2" (2)
Shank Height (Inch) 0.2500" (1/4)
Shank Width (Inch) 0.2500" (1/4)
