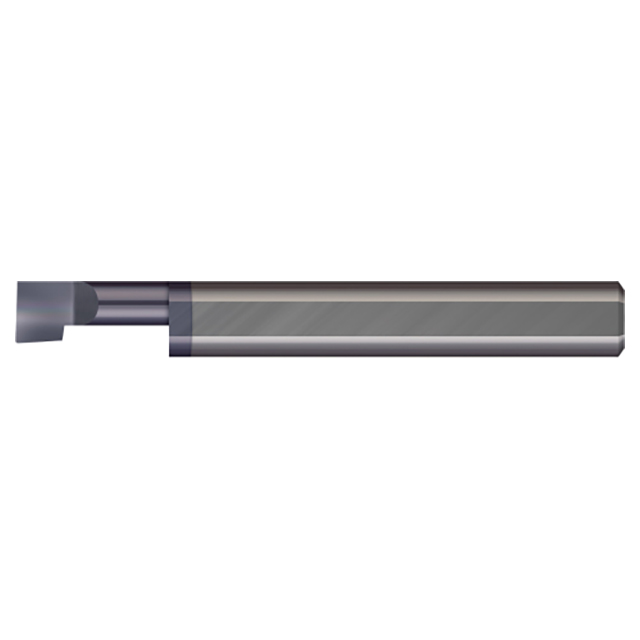

Micro 100 BB-290500X | 0.290" Minimum Bore Diameter x 0.500" Maximum Bore Depth x 5/16" Shank x 2-1/2" OAL AlTiN Coated Carbide Boring Bar

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.2900"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	1/2"
Max Bore Depth (Decimal Inch)	0.500"
Projection (Decimal Inch)	0.0720"
Shank Diameter (Inch)	5/16"
Shank Diameter (Decimal Inch)	0.3125"
Centerline Offset (Decimal Inch)	0.1338"
Radius (Decimal Inch)	0.0060"
Face Dimension (Decimal Inch)	0.156"
Neck Diameter (Inch)	7/32"
Neck Diameter (Decimal Inch)	0.2180"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.50"
Split Length (Decimal Inch)	0.220"
Tooth Width (Decimal Inch)	0.2000"
