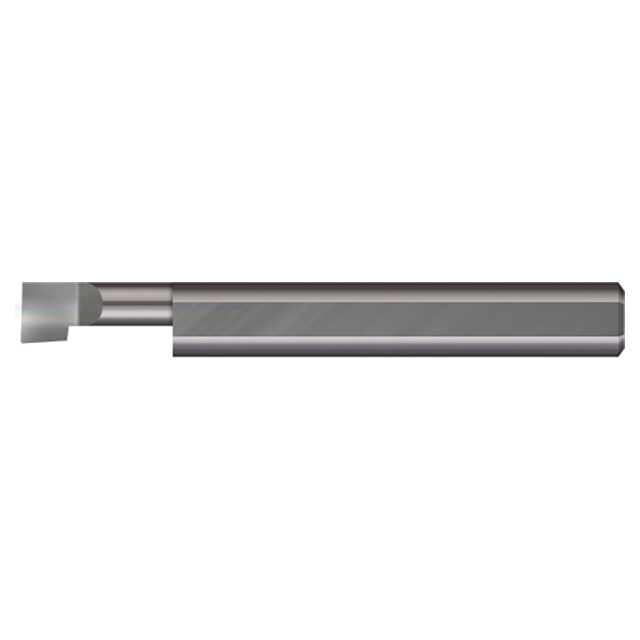

Micro 100 BB-3201800 | 0.3200" Minimum Bore Diameter x 1.800" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Boring Bar

$57.05
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3200"
Maximum Bore Depth (Decimal Inch):
1.800"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25125011
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.3200"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Decimal Inch) 1.800"
Projection (Decimal Inch) 0.0800"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.1325"
Radius (Decimal Inch) 0.0060"
Face Dimension (Inch) 3/16"
Face Dimension (Decimal Inch) 0.188"
Neck Diameter (Decimal Inch) 0.2400"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.245"
Tooth Width (Decimal Inch) 0.2000"
