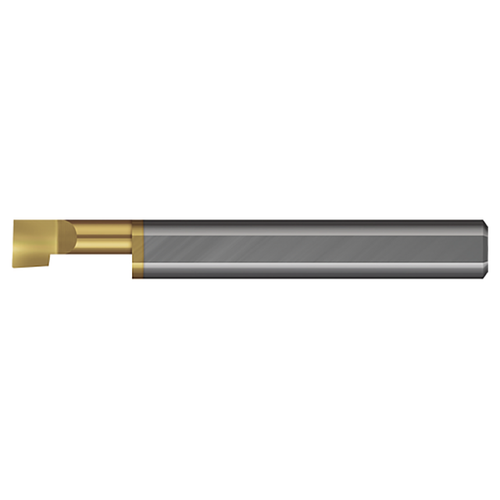

Name: Micro 100 BB12-1801000G | 0.196" Minimum Bore Diameter x 1.000" Maximum Bore Depth x 1/4" Shank x 2-1/2" OAL TiN Coated Boring Bar
Brand: Micro 100
SKU: 25395828
Price: 44.95 USD
Availability: InStock

Micro 100 BB12-1801000G | 0.196" Minimum Bore Diameter x 1.000" Maximum Bore Depth x 1/4" Shank x 2-1/2" OAL TiN Coated Boring Bar

$44.95

Brand:

Micro 100

Minimum Bore Diameter (Decimal Inch):

0.1960"

Minimum Bore Diameter (mm):

4.98mm

Shank Diameter (Inch):

1/4"

Shank Diameter (Decimal Inch):

0.2500"

Shank Diameter (mm):

6.35mm

Finish/Coating:

TiN

interval quantity:

SKU:

25395828

UPC:

Weight:

0.05 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Product Specifications

Manufacturer Part Number	BB12-1801000G
Minimum Bore Diameter (Decimal Inch)	0.196"
Minimum Bore Diameter (mm)	5.00mm
Head Width (Decimal Inch)	0.180"
Cutting Direction	Right Hand
Maximum Bore Depth (Decimal Inch)	1.000"
Maximum Bore Depth (Inch)	1"
Projection (Decimal Inch)	0.045"
Shank Diameter (Decimal Inch)	0.250"
Shank Diameter (Inch)	1/4"
Centerline Offset	0.0550"
Corner Radius (Decimal Inch)	0.012"
Radius (Decimal Inch)	0.012"
Neck Diameter (Decimal Inch)	0.135"
Overall Length (Decimal Inch)	2.500"
Overall Length (Inch)	2-1/2"
Coating	TiN
Product Type	Boring Bar
