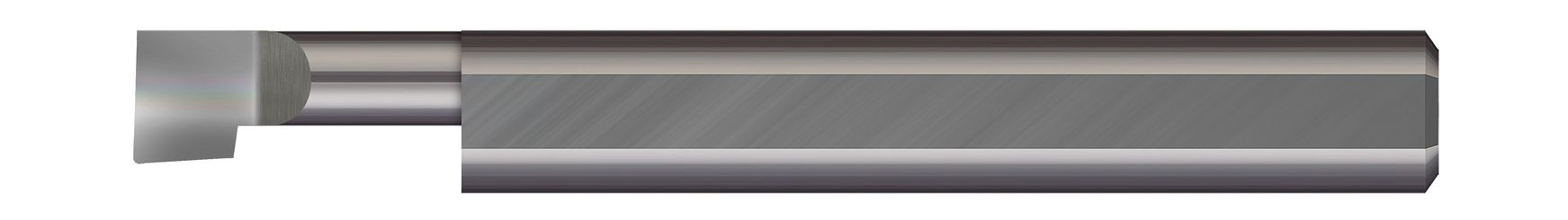

Micro 100 BB6-140900G | 0.1520" Minimum Bore Diameter x 0.900" Maximum Bore Depth x 3/16" Shank x 2" OAL TiN Coated Carbide Boring Bar

$32.20 $30.20
(You save $2.00)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233205
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Optimized for facing and boring applications in bores .0550" and larger, this line of right hand boring tools features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .0550" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1520"
Hand Direction Right Hand
Finish/Coating TiN
Max Bore Depth (Inch) 0.900"
Projection (Inch) 0.0350"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0460"
Radius (Inch) 0.0060"
Neck Diameter (Inch) 0.1050"
Overall Length (Inch) 2" (2)
