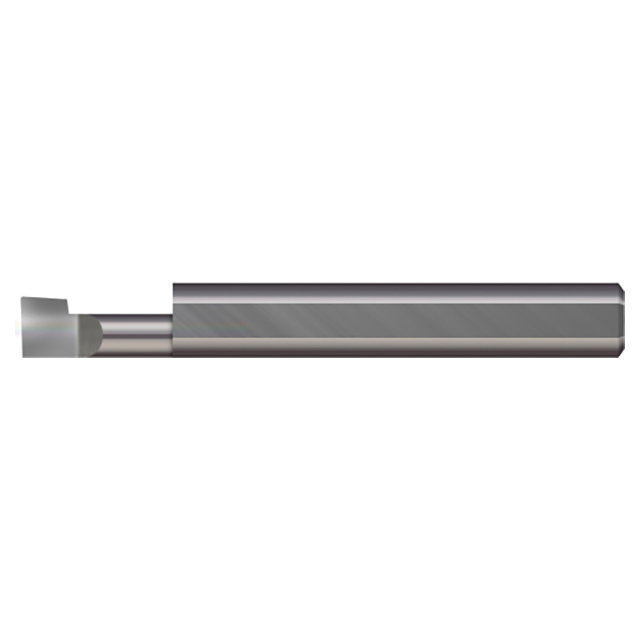

Micro 100 BBL-110700 | 0.1100" Minimum Bore Diameter x 0.700" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Left Hand Boring Bar

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.1100"
Hand Direction	Left Hand
Finish/Coating	Uncoated
Max Bore Depth (Decimal Inch)	0.700"
Projection (Decimal Inch)	0.0270"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Centerline Offset (Decimal Inch)	0.0475"
Radius (Decimal Inch)	0.0030"
Face Dimension (Inch)	1/16"
Face Dimension (Decimal Inch)	0.063"
Neck Diameter (Decimal Inch)	0.0830"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Split Length (Decimal Inch)	0.085"
Tooth Width (Decimal Inch)	0.0700"
