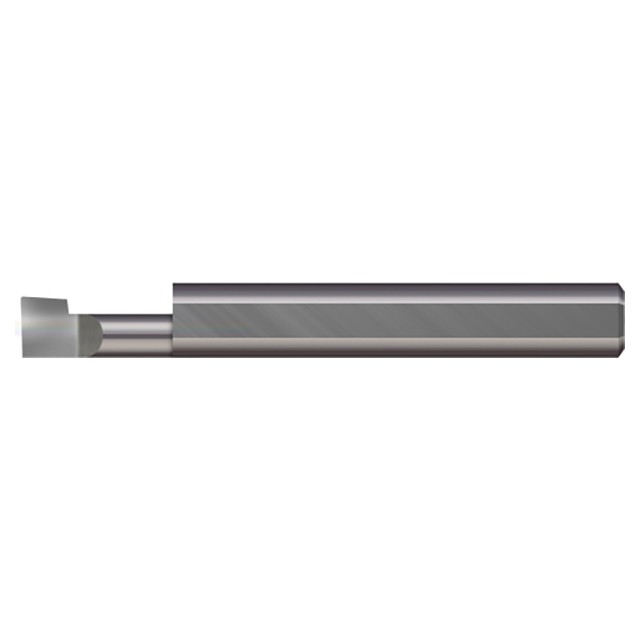

Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.1800" |
| Hand Direction | Left Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 1" |
| Max Bore Depth (Decimal Inch) | 1.000" |
| Projection (Decimal Inch) | 0.0450" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Centerline Offset (Decimal Inch) | 0.0550" |
| Radius (Decimal Inch) | 0.0060" |
| Face Dimension (Inch) | 1/8" |
| Face Dimension (Decimal Inch) | 0.125" |
| Neck Diameter (Decimal Inch) | 0.1350" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.50" |
| Split Length (Decimal Inch) | 0.175" |
| Tooth Width (Decimal Inch) | 0.1500" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1800"
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.000"
Material:
Carbide
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
