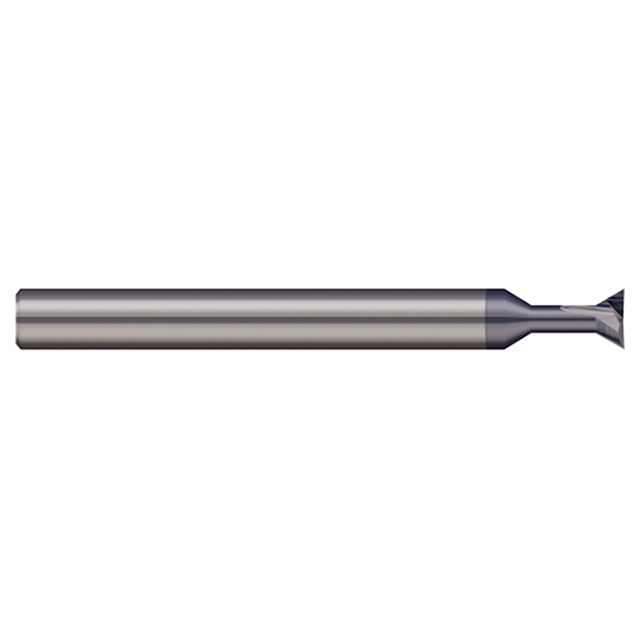

Micro 100 DT-187-030-010X | 3/16" Diameter x 3/16" Shank x 0.127" Width x 2" OAL 30 Degree Included Angle Carbide Dovetail Cutter

About This Item

Product Specifications

Cutter Diameter (Inch)	3/16"
Cutter Diameter (Decimal Inch)	0.1875"
Coating	AlTiN
Flutes	2
Length of Cut (Decimal Inch)	0.127"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Corner Radius (Decimal Inch)	0.010"
Angle per Side	15 Degree
Included Angle	30 Degree
Neck Diameter (Inch)	1/8"
Neck Diameter (Decimal Inch)	0.1250"
Neck Length (Inch)	1/8"
Neck Length (Decimal Inch)	0.125"
Overall Length (Inch)	2"
Overall Length (Decimal Inch)	2.00"
