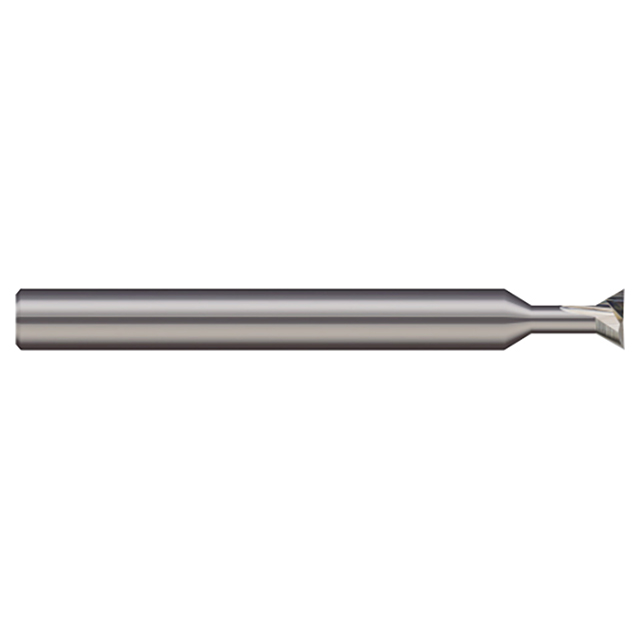

Micro 100 DT-312-090-010 | 5/16" Diameter x 5/16" Shank x 0.095" Width x 2-1/2" OAL 90 Degree Included Angle Carbide Dovetail Cutter

About This Item

Product Specifications

Cutter Diameter (Inch)	5/16"
Cutter Diameter (Decimal Inch)	0.3125"
Coating	Uncoated
Flutes	2
Length of Cut (Decimal Inch)	0.095"
Shank Diameter (Inch)	5/16"
Shank Diameter (Decimal Inch)	0.3125"
Corner Radius (Decimal Inch)	0.010"
Angle per Side	45 Degree
Included Angle	90 Degree
Neck Diameter (Decimal Inch)	0.1500"
Neck Length (Decimal Inch)	0.313"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.50"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
