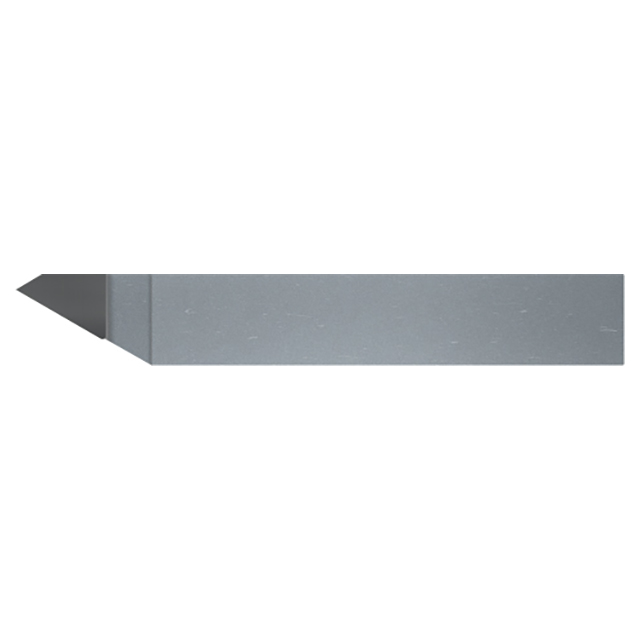

Micro 100 EL-10 | Width x 5/8" Square Shank EL Style Brazed Carbide Left Hand Single Point Threading Tool

$23.80
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
EL
Type:
Turning
Cutting Direction:
Left Hand
Shank Width/Diameter (Inch):
5/8"
Shank Width/Diameter (Decimal Inch):
0.6250"
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6250"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.00"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25126839
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Hand Direction Left Hand
Finish/Coating Uncoated
Offset (Decimal Inch) 0.094"
Angle per Side 30
Included Angle 60 Degree
Brazed Insert Length (Decimal Inch) 0.610"
Brazed Insert Width (Decimal Inch) 0.444"
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.00"
Shank Height (Inch) 5/8"
Shank Height (Decimal Inch) 0.6250"
Shank Width (Inch) 5/8"
Shank Width (Decimal Inch) 0.6250"
