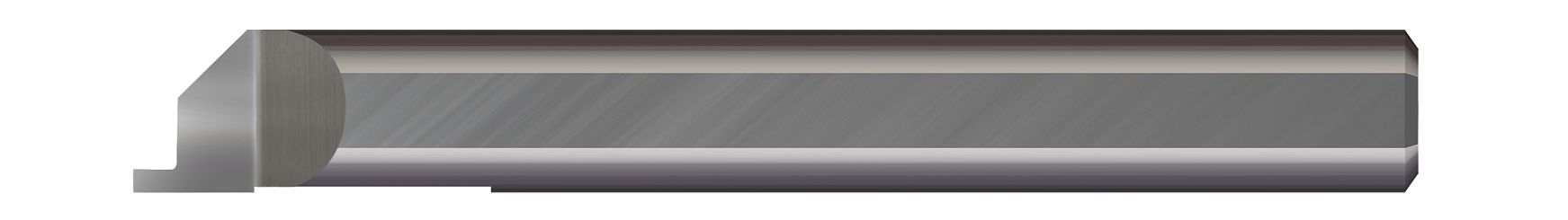

Micro 100 FG-250-025-025X | 1/4" Minimum Bore Diameter x 1" Maximum Bore Depth x 0.025" Width x 0.025" Projection x 1/4" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

Generate grooves in the face of a part with Micro 100's FG product line of face grooving tools, which feature a polished split face for improved edge retention and chip evacuation while reducing galling.

• Designed for generating square grooves in the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
• Sharp corner profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
