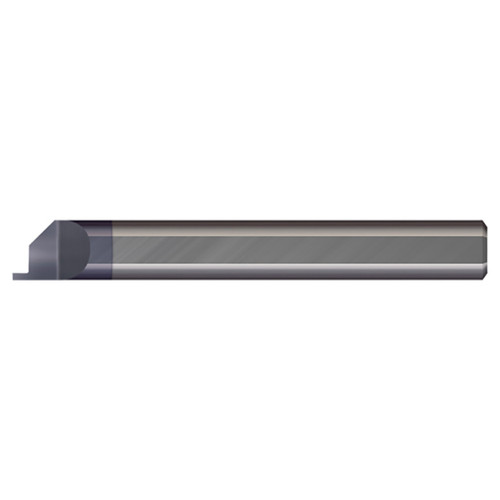

Micro 100 FG-500-156 | 0.156" Width x 0.1000" Projection x 1/2" Shank x 3" OAL Uncoated Carbide Grooving Tool

$64.60
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Groove Width (Decimal Inch):
0.156"
Projection (Decimal Inch):
0.1000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.00"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
SKU:
25127009
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Inch) 1/2"
Min Bore Diameter (Decimal Inch) 0.5000"
Hand Direction Right Hand
Finish/Coating Uncoated
Projection (Decimal Inch) 0.1000"
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Face Dimension (Inch) 1/4"
Face Dimension (Decimal Inch) 0.250"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.00"
Split Length (Inch) 3/8"
Split Length (Decimal Inch) 0.375"
Tooth Width (Inch) 5/32"
Tooth Width (Decimal Inch) 0.1560"
