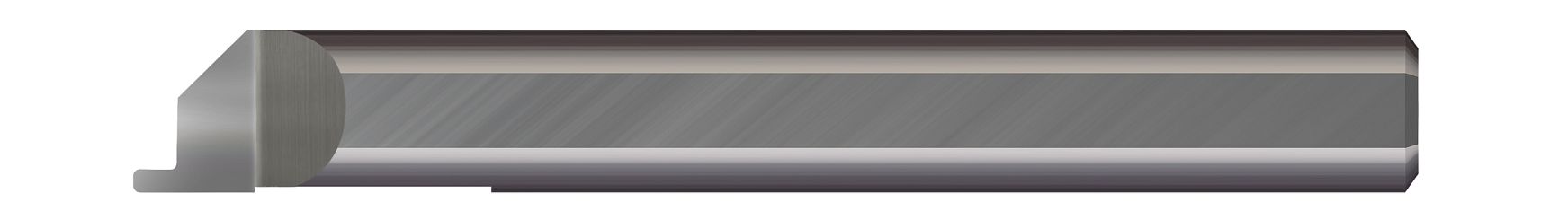

Micro 100 FGC3-250-030-050 | 1/4" Minimum Bore Diameter x 1" Maximum Bore Depth x 0.0300" Width x 0.0500" Projection x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

$34.25
Brand:
Micro 100
Finish/Coating:
Uncoated
Projection (Decimal Inch):
0.0500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
25175453
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
FGC3-250-030-050

Related Products

Featuring a corner radius profile for improved tool life, this fully stocked Face Groving tool is relieved along the axis for deep reach applications. This product is also available for use with Micro 100's Micro-Quik.

  • Designed for generating corner radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2500" (1/4)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1" (1)
Projection (Inch) 0.0500"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.1250" (1/8)
Radius (Inch) 0.0030"
Overall Length (Inch) 2.50" (2-1/2)
Overall Reach (Inch) 1" (1)
Tooth Width (Inch) 0.0300"
