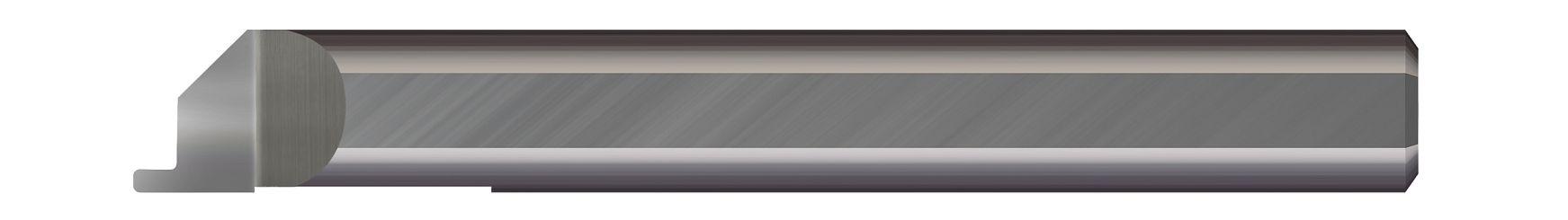

Micro 100 FGC3-375-062-075 | 3/8" Minimum Bore Diameter x 1-1/4" Maximum Bore Depth x 1/16" Width x 0.0750" Projection x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

Featuring a corner radius profile for improved tool life, this fully stocked Face Groving tool is relieved along the axis for deep reach applications. This product is also available for use with Micro 100's Micro-Quik.

• Designed for generating corner radius grooves in the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
• Corner radius profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
