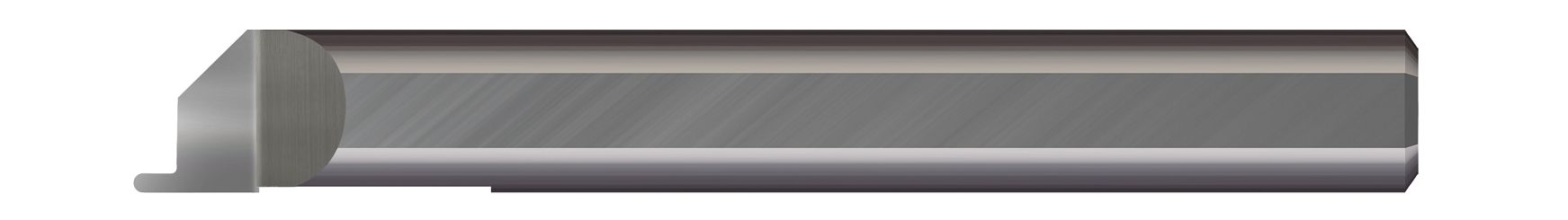

Micro 100 FGF-125-020-050X | 1/8" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.020" Width x 0.050" Projection x 1/8" Shank x 1-1/2" OAL AlTiN Coated Carbide Grooving Tool

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

• Designed for generating full radius grooves in the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Full radius profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid Carbide
• CNC ground in the USA
