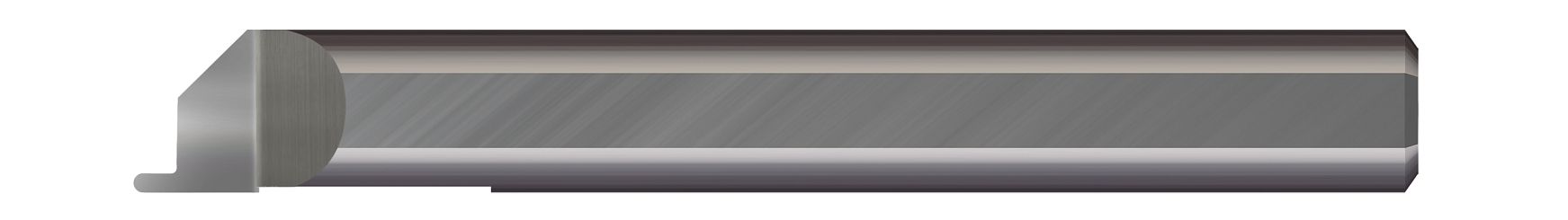

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for generating full radius grooves in the face of the part
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Full radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1250" (1/8) |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.375" (3/8) |
| Projection (Inch) | 0.0500" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0625" (1/16) |
| Radius (Inch) | 0.0150" (1/64) |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Overall Reach (Inch) | 0.375" (3/8) |
| Tooth Width (Inch) | 0.0300" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.0500"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
