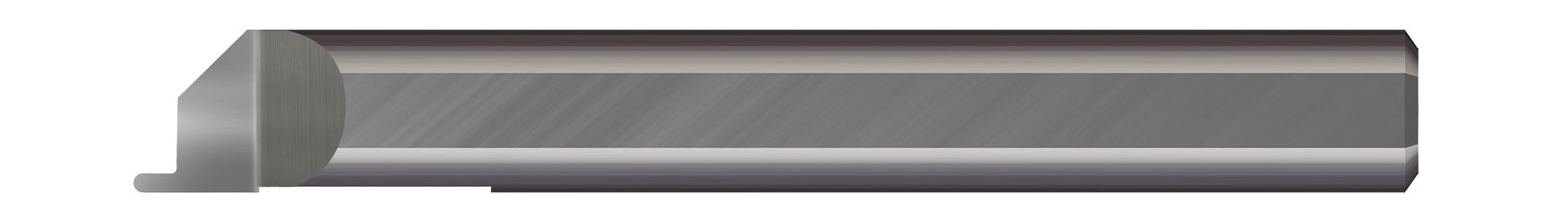

Micro 100 FGF-250-015-025 | 1/4" Minimum Bore Diameter x 1" Maximum Bore Depth x 1/64" Width x 0.0250" Projection x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

$33.10
Brand:
Micro 100
Minimum Bore Diameter (Inch):
1/4"
Minimum Bore Diameter (Decimal Inch):
0.2500"
Head Width (Inch):
1/4"
Head Width (Decimal Inch):
0.2500"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.0000"
Projection (Decimal Inch):
0.0250"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Radius (Decimal Inch):
0.0075"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
interval quantity:
1
SKU:
25175523
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
FGF-250-015-025

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating full radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Full radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2500" (1/4)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1" (1)
Projection (Inch) 0.0250"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.1250" (1/8)
Radius (Inch) 0.0075"
Overall Length (Inch) 2.50" (2-1/2)
Overall Reach (Inch) 1" (1)
Tooth Width (Inch) 0.0150" (1/64)
