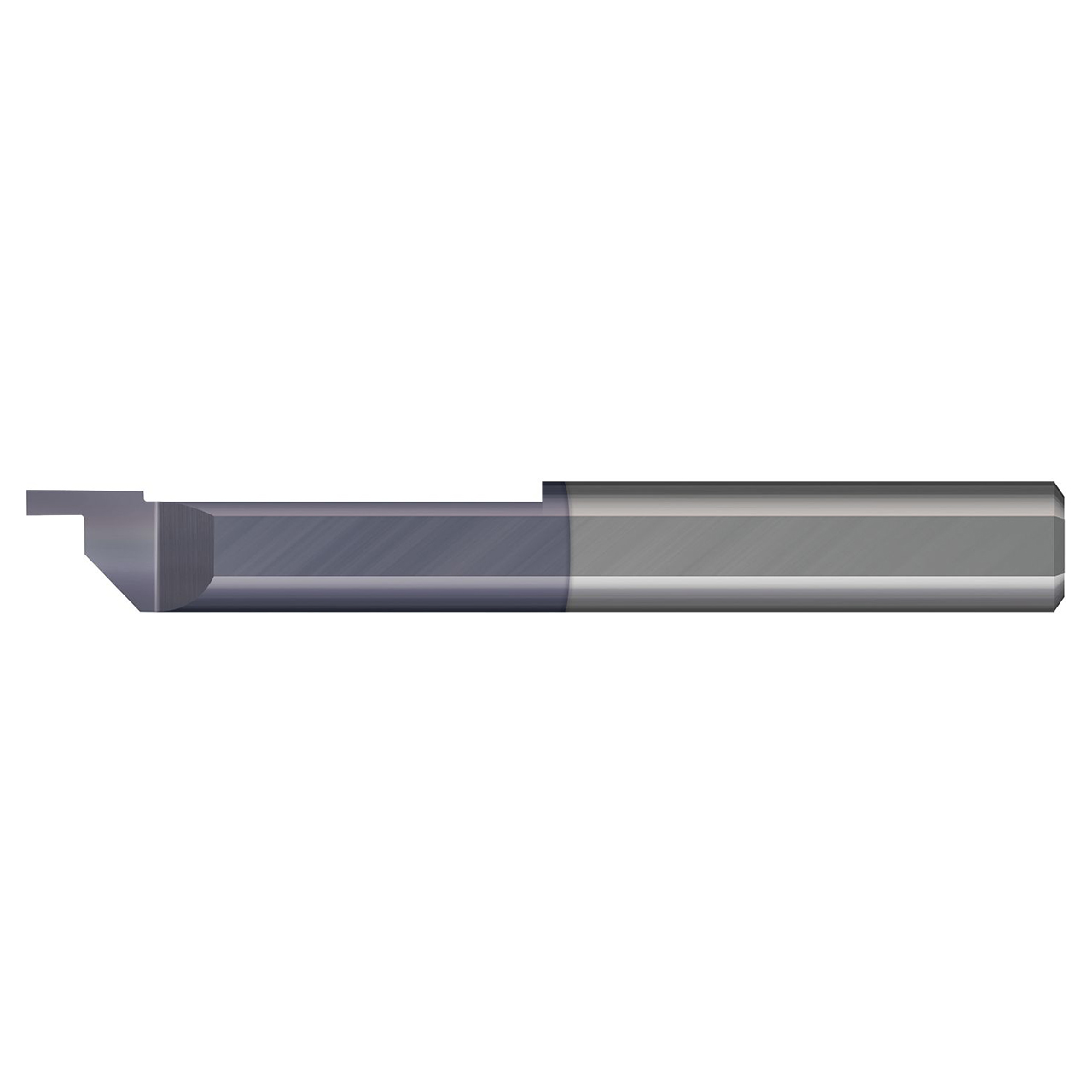

Micro 100 FGI-6754 | 0.490" Minimum Bore Diameter x 1.000" (1) Maximum Bore Depth x 0.236" Projection Uncoated Right Hand Grooving Tool

These fully stocked square profile Internal tooth face grooving tools are engineered to generate square grooves around a boss in the face of a part for right hand grooving applications.

• Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
• Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split face geometry provides optimal edge strength
• Sharp corner profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
