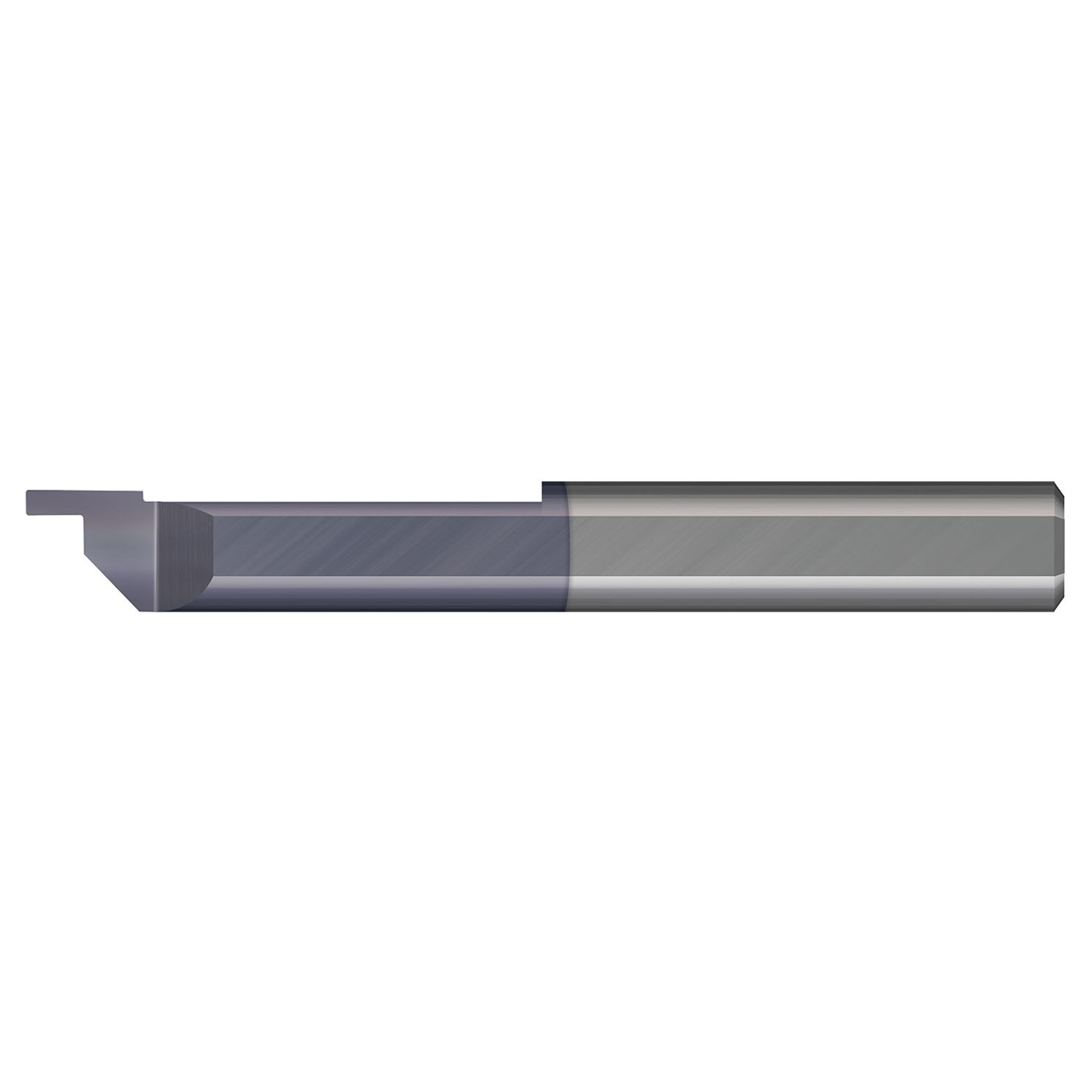

Micro 100 FGIC3-8466X | 0.3650" Minimum Bore Diameter x 1.250" (1-1/4) Maximum Bore Depth x 0.1250" (1/8) Projection x 0.0030" Radius AlTiN Coated Right Hand Grooving Tool

$73.80
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3650"
Head Width (Decimal Inch):
0.3650"
Finish/Coating:
AlTiN
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Projection (Decimal Inch):
0.1250"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Radius (Decimal Inch):
0.0030"
Neck Diameter (Decimal Inch):
0.3400"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Reach (Inch):
1-1/4"
Overall Reach (Decimal Inch):
1.2500"
SKU:
25236692
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Micro 100's internal tooth corner radius face grooving tools are designed to generate corner radius grooves around a boss in the face of a part for right hand grooving applications.

Features:
  • Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
  • Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberFGIC3-8466X
Minimum Bore Diameter (Inch)0.3650"
Maximum Bore Depth (Inch)1.250" (1-1/4)
Projection (Inch)0.1250" (1/8)
Shank Diameter (Inch)0.3750" (3/8)
Centerline Offset (Inch)0.1775"
Radius (Inch)0.0030"
Overall Length (Inch)2.50" (2-1/2)
Overall Reach (Inch)1.250" (1-1/4)
Neck Diameter (Inch)0.3400"
Tooth Width (Inch)0.0620" (1/16)
Hand DirectionRight Hand
CoatingAlTiN
